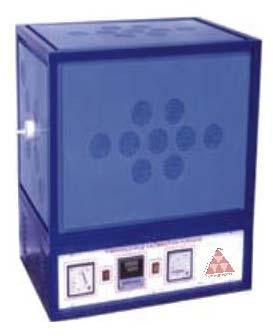

Thermocouple Calibration Furnace

Supply TypeManufacturer, Exporter
Preferred Buyer Location All over the world

We offering excellent grade Thermocouple Calibration Furnace. Constructed using a metallic sheath and high purity mineral oxide insulation, the Thermocouple Calibration Furnace comprises a number of concentric shells. Thermocouple Calibration Furnace possesses high insulation resistance making it suitable for most process applications in different laboratories. The precise design Thermocouple Calibration Furnace ensures a central zone of constant temperature.

View More Details

Send Enquiry

Product Details

Specifications

Specifications	150^oC -1100^oC	150^oC -1300^oC
Stability	300^oC ±0.75^oC 500^oC ±0.75^oC 700^oC ± 1.0^oC 1000^oC ± 1.0^oC 1100^oC ± 2.0^oC	300^oC ±0.75^oC 500^oC ±0.75^oC 700^oC ± 1.0^oC 1000^oC ± 1.0^oC 1300^oC ± 2.0^oC
Uniformity	300^oC ±0.75^oC 500^oC ±0.80^oC 700^oC ± 1.0^oC 1000^oC ± 1.5^oC 1100^oC ± 2.0^oC	300^oC ±0.75^oC 500^oC ±0.80^oC 700^oC ± 1.0^oC 1000^oC ± 1.5^oC 1300^oC ± 2.0^oC
Heating Rates	700-900^oC-145^oC/hr on low 900-1000^oC-370^oC/hr on high 1000-1100^oC -200^oC/hr on high	700-900^oC -145^oC/hr on low 900-1100^oC-370^oC/hr on high 1100-1300^oC-200^oC/hr on high
Cooling Rates	Nom. @ 800^oC 300^oC/hr Nom. @ 600^oC 180^oC/hr	Nom. @ 800^oC 300^oC/hr Nom. @ 600^oC 180^oC/hr
Stabilization Time	Typically 2 hours Midrange, slower at low-temp. end (4 hours), faster at high temp. end	Typically 2 hours Midrange, slower at low-temp. end (4 hours), faster at high-temp. end
Outside Dimensions	450 x 450 x 600 mm	450 x 450 x 600 mm
Internal Volume	50 mm Ø x 200 mm hot zone x length 600 mm	50 mm Ø x 200 mm hot zone x length 600 mm
Ceramic Tube	Internal Ø 50 mm x length 600 mm	Internal Ø 50 mm x length 600 mm
Power	230V ±10% 50/60 Hz20 A max	230V ±10% 50/60 Hz24 A max
Heater	5000 W High 1200 W Low	6000 W High 1500 W Low
Heating Element	Spiral Kanthal A-1	Silicon Carbide/Globar
Thermocouple	CR/AL	PT/PT-RH 13%
` Thermocouple Block	48 mm Ø x 200 mm length, provision for testing 5 Thermocouples at a time (3, 6, 8, 10 & 12.5 mm)	48 mm Ø x 200 mm length, provision for testing 5 Thermocouples at a time (3, 6, 8, 10 & 12.5 mm)
Controller	Microprocessor Based PID	Microprocessor Based PID
Cut out Probe / Control Probe	K-Type	R-Type
