Thermoelectric Cooler

We are offering thermoelectric cooler

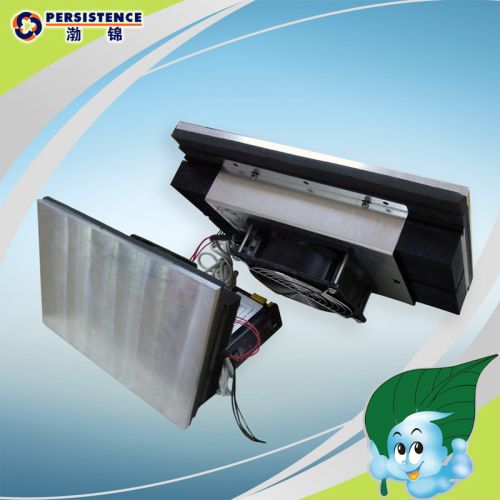

bjtp080-24 air to plate heat pump is designed for cooling various materials for flat surfaces, as well as for a variety of laboratory and industrial applications. It offers compact
design and a broad range of temperature control rated at 80w. This air to plate assembly can be controlled with an variable power supply or our pid temperature controllers.
specification:
model bjtp080-24vdc
cooling method air to plate
cooling objective air to plate
cooling objective contact part aluminum
cooling capacity 080w
fan input voltage 24vdc
peltier input voltage 24vdc
rated consumption current 4.3a or less
starting current 5.0a
working humidity below 80%
max ambient temperature 60 degree
overheat protection no
electrical connection screw
noise 45 db
site of use indoor
outer diameter of pipe connecting port -
dimensions (*4) 203.2x155.4x152.4mm
mass of main unit est. 2.5kgs
temperature controller (tc-24vdc-15a pcb tem transistor)
bojin tc-24vdc-15a pcb series transistor is an especially economical, open board o/off
temperature controller, designed to operate with thermoelectric modules. The controllers are capable of providing up to 15 amperes of current for modules rated at 12 through 24 volts dc.
designed for controlling temperature using thermoelectric modules.
rated for up to 15 amps at 12 to 24 volts dc
single mode operating for cooling application
initial temperature setting for 4 degree centigrade, could be adjusted from 0~15 degree centigrade.
continue volts output for fan.
features and benefits:
quick cooling to below ambient - economically
reduced space, size and weight
reliable solid-state operation - no sound or vibration (lifetimes of more than 200,000 hours!)
precision temperature control capability
minimum, if any, electrical noise
dc operation
heat or cool by changing direction of current flow
more than 150 standard types available, from sub-miniature, low capacity to compact, high capacity
multistage cascades to below -100°c, standard or designed to specifications
