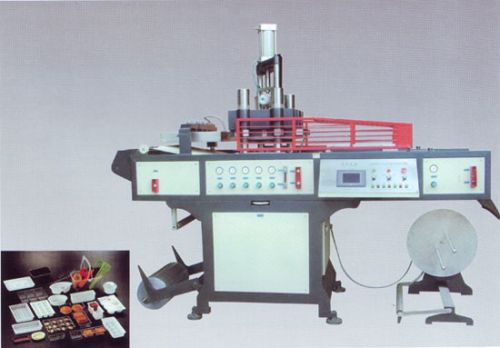

Contact SupplierYH-580 type plastic air pressure molding machine can be widely used in the heat production, making all sorts of one-time-use plastic containers and other plastic goods.Such as ice cream cup, yoghurt cup, all kinds of tin cans.Preserved fruit, candy box, box chocolate boxes, all kinds of aquatic products frozen crisper, medicine box, toy box.Hardware box, clothing and other daily necessities packing.
The biggest molding area 580*515mm
The biggest molding depth 110mm
Maximum sheet width 660mm
Sheet thickness range 0.15-1mm
Maximum diameter of the film roll 710mm
maximum length of die cutter 6350mm
Air pressure 0.7Mpa
preheater power 4KW
template heater power 4.8KW
Heating plate power 12KW
Power Supply Three-phase four-wire AC 380V±1.5V
Water consumption 350 liters / hour
production rate 600-1200 times/h
Equipment Dimensions host:3200*l400*2350(mm)
Weight About 2300Kg
maximum gas flow rate About 2m3/min
