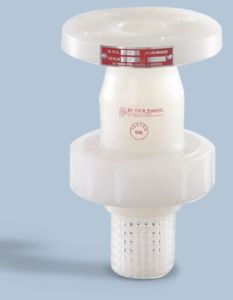

Contact SupplierWe offer a high-quality Thermoplastic Foot Valve designed for optimal performance. Made from durable thermoplastic material, this foot valve is suitable for various applications. It features end connections in socket or NPT, with threaded or flanged connection types for easy installation. With a pressure rating of up to 150 psi and a temperature rating of up to 140°F, this foot valve ensures reliable operation in diverse conditions. Ideal for manufacturers seeking a dependable solution, our Thermoplastic Foot Valve guarantees efficiency and longevity.
| NO. | DESCRIPTION | QTY. | MATERIAL |
|---|---|---|---|
| 1 | BODY | 1 | PP / ISO.PP/ PVDF /ETFE |
| 2 | SOCKET | 1 | PP / ISO.PP/ PVDF /ETFE |
| 3 | BALL | 1 | PP / ISO.PP/ PVDF /ETFE |
| 4 | SEAT | 1 | EPDM / VITON /PTFE |
| 5 | SEAT PAD | 1 | PP / ISO.PP/ PVDF /ETFE |
| 6 | BODY SEAL | 1 | EPDM / VITON / PTFE / NEOPRENE |
| 7 | COVER NUT | 1 | PP / ISO.PP/ PVDF /ETFE |
| 8 | STRAINER | 1 | PP / ISO.PP/ PVDF /ETFE |
