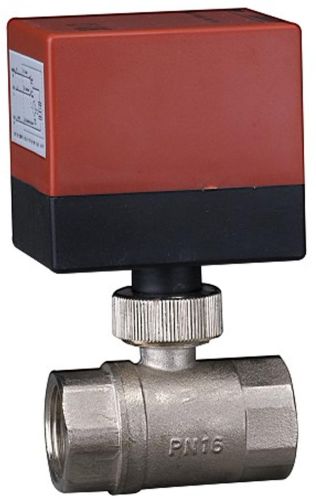

Thermostatic Brass On and Off Two Way Motorized Ball Valve

MOQ100 Piece(s)
Power consumption4W(only when you open and close the valve)
Working voltageAC220V± 10%
Nominal pressure2.5mpa
Supply TypeManufacturer, Exporter
Preferred Buyer Location All over the world

We are offering thermostatic brass on and off two way motorized ball valve. 1.product summary two way motorized ball valve(dq215)are used to control the onoff of the water system in hvac system,....

Company Information

Member Since 11 Years
Nature of Business Manufacturer

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

We are offering thermostatic brass on and off two way motorized ball valve.
1.product summary
two way motorized ball valve(dq215)are used to control the onoff of the water system in hvac system, consisting of actuator and valve body.
2.technical parameter
●working voltage: ac220v± 10%, 5060hz (special-made: 24vac)
●power consumption: 4w(only when you open and close the valve)
●running time of each action: ≤ 15s (valve-on); ≤ 15s(valve-off)
●nominal pressure: 2.5mpa
●applied medium: cold or hot water, glycol water liquor (≤ 50%).
●medium temperature: 2-90ºc
●grade of protection: ip54
●safety class: ii (double insulation)
●material of valve body: brass ( surface is plated with nickel)
●material of actuator: outer cover: abs+pc engineering plastic (fire-resistant) base: enhanced pbt (fire-resistant)
