Placed in Mumbai(India), we share space with the top-notch Suppliers, domestically and offer top-of the line array of in the market. We stringently follow the safety packaging guidelines, thus we are flexible enough in delivering the products to the clients. We only use the finest packaging material to evade loss during transit.

Accessories :

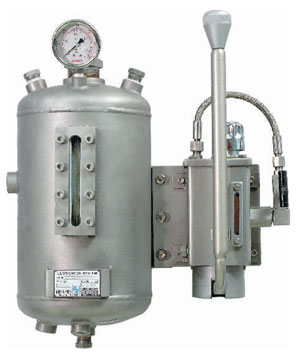

• Pressure Gauge (0-40 kg/cm ) - To Measure the Pressure Inside Vessel Level Gauge :- To Indicate the liquid level Inside the Vessel
• Hand Pump - To Recharge the Thermosyphon vessel with Additional Quantity of Barrier Fluid when Thermosyphon is under Pressure and Liquid level is Low.
• Metal Parts - Thermosyphon
• Shell - Carbon Steel - SS 304/SS 316
• Cooling Coil - SS 304/SS 316 Empty
• Weight - 32 (kg/cm )

Operating Limits :

• Capacity - 7.5 Litres Design
• Pressure - 10 bar (kg/cm ²) Hyd.
• Test Pressure -15 Bar (kg/cm ²)
• Max Working temp - 150^oc
• Heat Transfer Area of Cooling Coil : 0.226 m
• Cooling Water Flow Rate Recommended : 10 Litre/min Connection

Specifications :

• Cooling Water Inlet - 1/2" NPT (F)
• Cooling Water Outlet - 1/2"NPT (F)
• Buffer Inlet - 1/2" NPT (F)
•  Buffer Outler - 1/2" NPT (F)
• Pressure Gauge Connection - 3/8"  NPT (F)
• Filling Connection - 1/2"  NPT (F)
• Pressure Gas Connection - 1/2" NPT (F)
• Refilling Connection - 1/4" NPT (F)
• Drain - 1/2" NPT (F)
