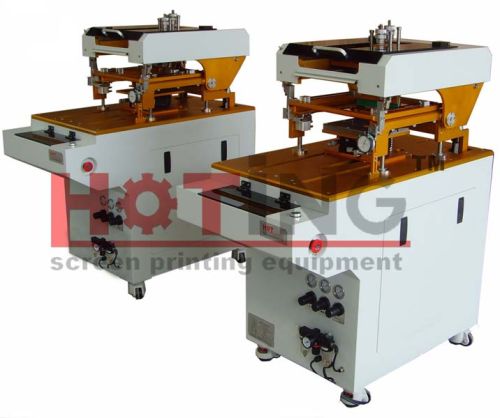

Thick Film Circuit/LTCC/ITO Glass/Solar Cell Screen Printing Machine

Application:
LTCC, ceramic capacitor, filter, thick film circuit, solar cell etc printing.
Specification:
1. High precision printing effect through reasonable design, fine parts processing and PLC program setting.
2. Convenient one touch screen frame clamp.
3. High precision roller screw keep squeegee scraper even speed.
4. Using micro direction adjustment keep printing position accurate and instant.
5. Precision manufacturing alloy workplatform to keep printing evenness.
6. Installing adjustable squeegee pressure regulator.
7. Compact equipment and low noise design improve the influence of working area and environment.
Optional:
CCD Camera & Monitor
Parameter:
Model
PHP-1212B
Max printing size
120 X 120mm
Worktable size
220 X 220mm
Printing speed
500 cyclehour
Max frame size
320 X 320mm
Printing pressure 0-50kgf
Printing table adjustable range XY ±10mm Z=0-50mm
Printing table toleranceInout ±10um
Printing table flatness ±10um
Printing repeat tolerance Front and back side 0 - 9999 times
Screen fixed Cylinder clamp
Air pressure
6kgfcm2
Weight
Approx. 460kg
Power
220V X 1ph X 1KW
Dimension (W X D X H)
790 X 1190 X 1200mm
Printing material fixed
Suction by ring blower
