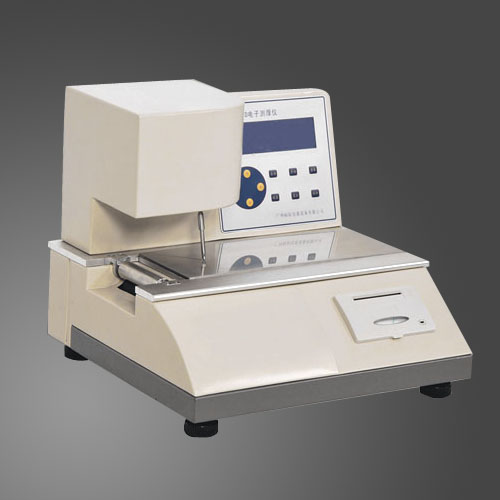

Thickness Tester

We offer Thickness Tester.
Structure
this micrometer is made up with control system, test system, print and output system. Test system is for testing specimens and output of electrical signal. Control system is applied for setting and modification of parameters, signal processing, result displaying and so on. Output system's function is to print out the result.
Features
mechanical test method, no restriction of testing materials;
testing accuracy up to 0.1 micron contacting area and pressure between testing head and film conform to the relative standards strictly;
supply for manual or automate measurement mode;
special configuration design guarantees the parallel of the upper and lower test surfaces;
lcd displays test parameters, can print out the testing result;
with po or multipoint testing;
showing max. Value, min. Value, average value and current value in the measurement process;
can connect computer, professional software( select)
specifications
test range: 0~5mm(normal)
resolution: 0.1μm
sample spacing:0~1000mm
measurement points: 0~10points
working temperature: 0～40℃
power supply: 220v, 50hz
