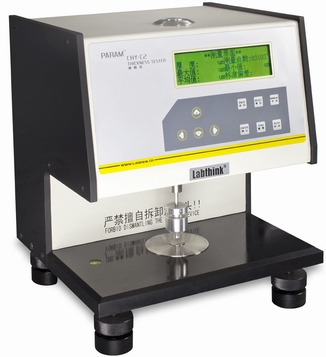

Thickness Tester, Brand Name : Labthink

We are offering thickness tester-chy-c2 as thickness tester is designed based on the mechanical contacting method, which effectively ensures standard and accurate test data.
1.contact area and pressure are strictly designed according to standard requirements, whereas customization is also available
2.automatic lifting presser foot facilitates to minimize system errors that caused by human factors during the test
3.manual or automatic operating mode for convenient test
4.display the real-time data of maximum, minimum, average and standard deviation value for data analysis
applications
plastic films and sheets
paper and paper board
foils and silicon wafers
metal sheet
textiles and non-woven fabrics
solid electrical insulating materials
technical specifications:
pendulum capacity: 0~2 mm (standard)
0~6 mm, 12 mm (optional)
resolution :0.1 μm
test pressure :17.5±1 kpa (film)
50±1 kpa (paper)
instrument size: 300 mm(l) x 275 mm(w) x 300mm(h)
power supply :ac 220v 50hz
net weight :33 kg
this instrument conforms to multiple national and international standards:
iso 4593, iso 534, iso 3034, astm d645, astm d374, astm d1777, tappi t411, din 53105, din 53353, jis k6250, jis k6328, jis k6783, jis z1702, bs 3983, bs 4817, gb/t 6672, gb/t 451.3, gb/t 6547.
