Thread Bar

Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

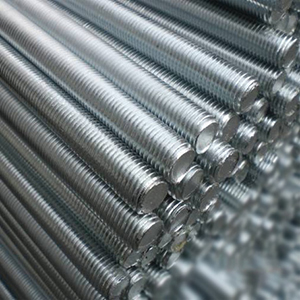

A Threaded Rod is a relatively long rod in which the thread may extend to complete length of rod. They are designed to be used in tension. Threaded rod is also commonly known as thread bar. SJS is one of the largest manufacturer of Threaded Rod established in UAE since 1992. We follow the manufacturing standard of fasteners such as ASTM AISI BS EN ISO DIN & JIS. We are always striving to diversify our Threaded Rod manufacturing capabilities to be able to satisfy the needs of our customers all around the globe regarding Threaded Rod

View More Details

Company Information

Member Since 7 Years
Nature of Business Supplier

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

METRIC			IMPERIAL (ASTM )
DIA	PITCH	LENGTH/ STANDARD	DIA	THREAD PER INCH	LENGTH/ STANDARD
M-8	1.25	3.6MTR/2MTR	3/8"	16	12 FT.
M-10	1.5	3.6MTR/2MTR	7/16"	14	12 FT.
M-12	1.75	3.6MTR/2MTR	1/2"	12	12 FT.
M-14	2	3.6MTR/2MTR	5/8"	11 UN	12 FT.
M-16	2	3.6MTR/2MTR	3/4"	10 UN	12 FT.
M-18	2.5	3.6MTR/2MTR	7/8"	9 UN	12 FT.
M-20	2.5	3.6MTR/2MTR	1"	8 UN	12 FT.
M-22	2.5	3.6MTR/2MTR	1-1/8"	8 UN	12 FT.
M-24	3	3.6MTR/2MTR	1-1/4"	8 UN	12 FT.
M-27	3	3.6MTR/2MTR	1-3/8"	8 UN	12 FT.
M-30	3.5	3.6MTR/2MTR	1-1/2"	8 UN	12 FT.
M-33	3.5	3.6MTR/2MTR	1-3/4"	8 UN	12 FT.
M-36	4	3.6MTR/2MTR	1-7/8"	8 UN	12 FT.
M-39	4	3.6MTR/2MTR	2"	8 UN	12 FT.
M-42	4.5	3.6MTR/2MTR	2-1/4"	8 UN	12 FT.
M-45	4.5	3.6MTR/2MTR	2-1/2"	8 UN	12 FT.
M-48	5	3.6MTR/2MTR	2-3/4"	8 UN	12 FT.
M-52	5	3.6MTR/2MTR	3"	8 UN	12 FT.
M-56	5.5	3.6MTR/2MTR	3-1/4"	8 UN	12 FT.
M-64	6	3.6MTR/2MTR	3-1/2"	8 UN	12 FT.
M-72	6	3.6MTR/2MTR	3-3/4"	8 UN	12 FT.
M-76	6	3.6MTR/2MTR	4"	8 UN	12 FT.
