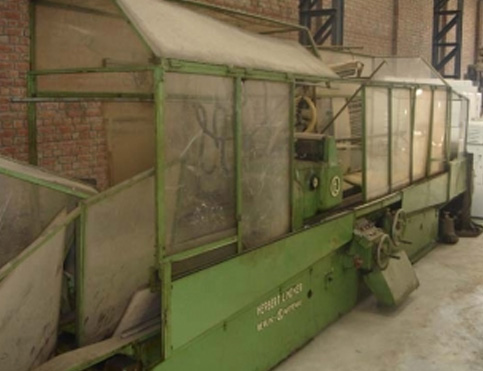

Thread Grinder

DETAIL: DISTANCE BETWEEN CENTRES 2,000 MM HEIGHT OF CENTRES, APPROX. 280 MM MAX. LENGTH OF WORKPIECE 2,200 MM GRINDING LENGTH 2,000 MM WORKPIECE �, MIN.MAX. 10 - 550 MM GRINDING � ON THE TOTAL LENGTH 400 MM WORKSPINDLE BORE ENLARGED TO 105 MM LEAD RANGE, MIN.MAX. 1 150 MM MAX. HELIX ANGLE, RIGHT LEFT 30 40 � GRINDING WHEEL, � X WIDTH 500 X 50 MM PROFILE SIZE: MODULE 14 MM BALLSCREW THREADRADIUS 12.5 MM WORKPIECE SPEEDS, STEPLESSLY ADJUSTABLE 0.1 - 25 RPM QUICK FEED 60 RPM GRINDING WHEEL SPEEDS, APPROX. 1,700 - 2,540 RPM SPINDLE DRIVE 8 KW TOTAL ELECTRICAL LOAD, APPROX. 20 KW - 380 V - 50 HZ WEIGHT, APPROX. 15,000 KG
