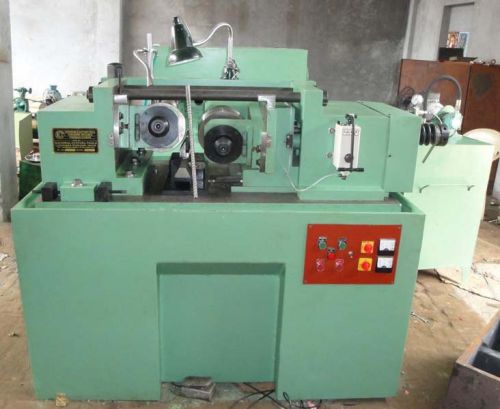

Thread Rolling Machines

Get Latest Price

MOQ1 Piece(s)
Number Of FlowerHydraulic Thread Rolling Machine
Max Diameter Can Be Rolled In Feed (in Mm)25 - 50
Max Rolling Force8 - 15 Tons
Max Pitch Can Be Rolled (in Mm)2.5 - 4.0
Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

View More Details

Send Enquiry

Company Information

National Cutting Tools

Model Gram, Ludhiana, Punjab

4.6/5

(28)

View Number

Member Since 17 Years
Nature of Business Retailer
GST No. 03AAFFN1688L1Z1

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Number Of FlowerHydraulic Thread Rolling Machine
Max Rolling Length In Feed (in Mm)80 - 150
Power For Hydraulic Pump2 - 5 HP
Max Diameter Can Be Through Feed (in Mm)16 - 35
Max Rolling Force8 - 15 Tons
Max Outer Diameter Thread Rolls (in Mm)150 - 200
Spindle Diameter (Bore Diameter) (in Mm)54 - 69.85
Power For Roll Spindles3 - 7.5 HP, 1400 Rpm
Max Diameter Can Be Rolled In Feed (in Mm)25 - 50
Max Pitch Can Be Rolled (in Mm)2.5 - 4.0
Power For Coolant Pump0.1 - 1 HP
Roll TypeTwo Roll

Model NCT2R-25 Hydraulic Thread Rolling Machine Two roll type with complete Electrical.
Specification:
model No.:NCT -25
Max. Pitch Can Be Rolled (in Mm): 2.5
Max. Dia Can Be Rolled in Feed (in MM): 25
Max. Dia Can Be Through Feed (in MM): 16
Max. Rolling Length in Feed (in MM): 80
Max. Rolling Length Through Feed: Indefinite
Max. Outer Dia Thread Rolls (in MM): 150
spindle Dia (bore Dia) (in MM): 54
Max. Rolling Force: 8 Tons
Power for Roll Spindles: 3 HP. 1400 Rpm
Power for Hydraulic Pump: 2 HP.
Power for Coolant Pump: 0.1 HP.
1. Model NCT2R-40 Hydraulic Thread Rolling Machine Two roll type with complete Electrical.
Model No.: NCT-40
Max. Pitch Can Be Rolled (in MM): 3.5
Max. Dia Can Be Rolled in Feed (in MM): 40
Max. Dia Can Be Through Feed (in MM): 28
Max. Rolling Length in Feed (in MM): 150
Max. Rolling Length Through Feed: Indefinite
Max. Outer Dia Thread Rolls (in MM): 180
Spindle Dia (bore Dia) (in MM): 54
Max. Rolling Force: 13 Tons
Power for Roll Spindles: 5 HP. 1400 Rpm
Power for Hydraulic Pump: 3 HP.
Power for Coolant Pump: 0.1HP.
1. Model NCT2R-50 Tie Rod and 25mm-50mm Hydraulic Thread Rolling Machine Two roll type with complete Electrical.
Model No.:NCT-50
Max. Pitch Can Be Rolled (in MM): 4.0
Max. Dia Can Be Rolled in Feed (in MM): 50
Max. Dia Can Be Through Feed (in MM): 35
Max. Rolling Length in Feed (in MM): 150
Max. Rolling Length Through Feed: Indefinite
Max. Outer Dia Thread Rolls (in MM): 200
Spindle Dia (bore Dia) (in Mm): 69.85
Max. Rolling Force: 15 Tons
Power for Roll Spindles: 7.5 HP. 1400 Rpm
Power for Hydraulic Pump: 5HP.
Power for Coolant Pump: 1 HP.
