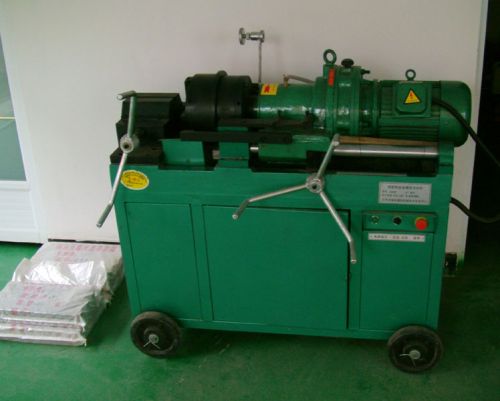

Threading Machine

We are offering int'l brand - ‘slmt' threading machine ，rebar sleeve by iso & ce.
specifications
rebar parallel thread rolling machine
16-40mm rebar with max thread length 200mm
right for rebar splicing & anchor bolts
specifications:
(1) strip rebar rib first.
(2) roll parallel thread on rebar end.
(3) splice two pieces of threaded rebar with coupler.
machine function:
rebar thread rolling machine is used to strip rebar rib first and roll parallel thread on rebar end. After that two threaded rebar sectors are connected by rebar coupler.
machine advantages:
rebar rib peeling straight thread overcomes defects of strapping, welding, extrusion, taper thread, upsetting straight thread, and combines the respective advantages
1) high precision thread
2) high connection strength
3) high construction efficiency
4) simple operation
5) saving material
6) lower cost
7) shortening construction period
8) reduce the labor intensity of workers
it is the upgrading technology of steel bar connection in the construction industry.
main technical parameters:
model
crs32-3
suitable for rebar diameter
φ16-φ32mm
max thread length
70mm
thread angle
60°/ 75°
thread pitch (mm)
p=2/p=2.5 φ12-φ22
p=2.5/p=3 φ25-φ32
p=3/p=3.5 φ36-φ40
rated power
3kw
rotated speed
62r/min
dimension l*w*h
1150*670*1000mm
after replacing thread rolling head, the machine can process rebar φ12,φ14
