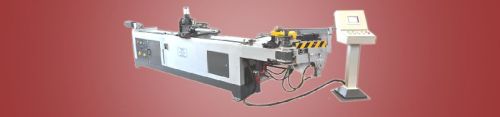

Three Axes Pipe Bending Machines

Get Latest Price

MaterialMetal
Packaging TypeMulticolor
ApplicationTube Bending Purposes In Engineering And Automobile Industry
FeatureColour LCD Touch Panel For Data Entry And Editing
Number Of FlowerPipe Bending Machine
Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

View More Details

Send Enquiry

Company Information

Naveen Hydrocontrols

Bhosari, Pune, Maharashtra

4.6/5

(29)

View Number

Member Since 16 Years
Nature of Business Retailer
GST No. 27ADUPN7840E1Z2

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Packaging TypeMulticolor
Number Of FlowerPipe Bending Machine
MaterialMetal
ApplicationTube Bending Purposes In Engineering And Automobile Industry
FeatureColour LCD Touch Panel For Data Entry And Editing

Our firm is recognized in the market as solid manufacturer, exporter and provider of the finest quality Three Axes Pipe Bending Machine. Our offered machine is proficiently fabricated utilizing predominant review parts and propel innovation as per set global norms. The machine gave by us is broadly utilized for various sorts of tube twisting purposes in a several engineering and automobile industry. Adjacent to this, we give this Three Axes Pipe Bending Machine in various models and specialized particulars at ostensible costs.

Features:

Colour LCD Touch Panel for Data Entry and Editing
Operation mode-Manual/Semi auto/Fully Auto
15 bends program
Bend arm over ride switch to prevent bend arm/machine collision
Programming in in mm
Program Retrieval by Alphanumeric code, password
Hydraulic Mandrel Retraction
Online/Offline diagnosis mode
Built In Hydraulic Oil Cooling system
Clockwise Bending

CNC 3 Axes Pipe Bending Machie

Our firm is recognized in the market as solid manufacturer, exporter and provider of the finest quality Three Axes Pipe Bending Machine. Our offered machine is productively fabricated utilizing prevalent review parts and propel innovation as per set worldwide models. The machine gave by us is generally utilized for various sorts of tube twisting purposes in a several engineering and automobile industry. Alongside this, we give this Three Axes Pipe Bending Machine in various models and specialized determinations at ostensible costs.

TECHNICAL SPECIFICATIONS: CNC150PTX

1.0	Capacity
1.01	Max Tube Dia(OD)	mm	168
1.02	Max Tube Dia(OD)	mm	50
1.03	Max Wall Thickness	mm	18
1.04	Max Bending Radius( Centre Line Radius)*	mm	600
1.05	Min Bending Radius ( Centre Line Radius)*	Degree	2
1.06	Max Bending Angle	Degree	200
1.07	Min Distance between Bends	mm	0
2.0	Capacity Speed
2.01	Feeding speed Y	mm/sec	200
2.02	Feeding speed B	Deg/Sec	50
2.03	Feeding speed C	Deg/Sec	3 To 13
3.0	Speed Accuracies
3.01	Feeding	mm	0.2+/-
3.02	Rotating	mm	0.2+/-
3.03	Bending	mm	0.2+/-
4.0	Hydraulics
4.01	length over Mandrill	mm	3000
4.02	Max Hydraulic Pressure	Bar	140
4.03	Oil Tank Capacity	Lts	400
4.04	Operating Voltage		415v,50Hz,3ph
5.0	Electrical and Electronics
5.01	Total Motor power	kw	40 Approx
5.02	CNC Controller		B&R
5.03	Hydraulics Parts		Rexroth
