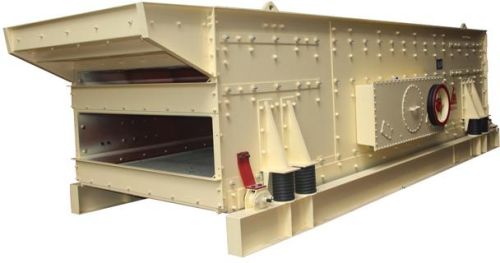

Contact SupplierThree-axis Elliptical Vibrating Screen
vibrating screen
Description:
Three-axis elliptical vibrating screen 3ZTS1860 is a high efficiency new type of vibrating screen which with multiple layers. It adopts barrel vibtation exciter and adjusts the amplitude via balancing weight. And it is designed forquarry to screen stone. Suitable for classifying in coal preparation, ore dressing, building material, power and chemical industries.
Specifications:
Model Layer Specification   (mm) Maximum   feeding (mm) Ability   to handle (th) Vibration   frequency (Hz) Electric   power (kw) Shape   dimension (Length*width* height mm)
2ZTS1550 2 1500*500 120 30-160 13-16 18.5 5700*2240*1470
2ZTS1860 2 1800*6000 120 50-180 13-16 22 6870*2550*1470
2ZTS2060 2 2000*6000 150 50-200 13-16 22 6870*2750*1470
2ZTS2460 2 2400*6000 150 80-240 13-16 30 6870*3150*1470
3ZTS1550 3 1500*5000 120 30-160 13-16 22 5700*2240*1870
3ZTS1860 3 1800*6000 120 50-180 13-16 30 6870*2550*1870
3ZTS2060 3 2000*6000 150 50-200 13-16 30 6870*2750*1870
3ZTS2460 3 2400*6000 150 80-240 13-16 37 6870*3150*1870
Advantages & Characteristics
1. Structural reliability,powerful vibrating forces
2. High screening efficiency,low vibrating noise
3. Sturdy and durable,easy maintenance,safe in operation
