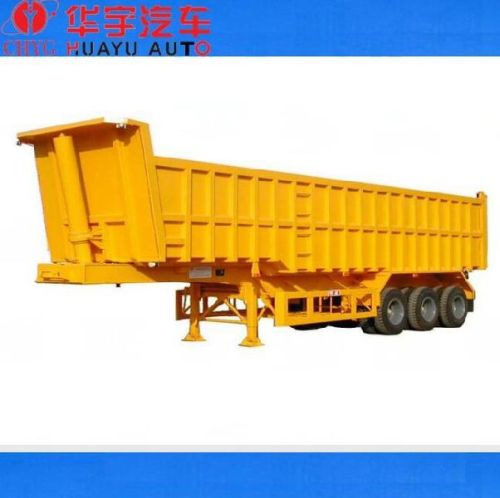

CHYG dump semi trailer
Function
Stone/coal transporting
Overall demension
10000x2500x3650mm
Loading capacity
50ton
Main beam
(material :Q345)
Beam height :500mm
Upper plate:16mm
Down plate:18mm
Middle plate:8mm
Tare weight
12ton
Traction pin
2/3.5 inch
Landing gear
Jost /fuwa/ standard 28t two speed
Axle
Fuwa/bpw/hj/L1/yuek 3x13ton the brand can be optional
Suspension type
Mechanical normal suspension ï¼›air suspension can be optional
Leaf spring
10/10/10 (10X90X16mm)
Tire
Triangle/double star/chengshan/double coin/chaoyang 12R22.5 18PR 12pcs optional
Wheel rim
9.0-22.5 12pcs
Box details
Plate form :8mm side wall:6mm
Plateform thickness
3mm checkered plate
Brake chamber
4 double 2 single
Cylinder
HYVA 196-7300/214-5-7130/8130/9130 optional
Spare tire carrier
2 pcs
Side marker lamp
LED lamp
Electrical system
Chinese stand 24v
Air line
Double air line
Receptacle
7 ways(7 wires harnesses)
Marking
As Customer requirment
Accessories
Head wrech ;spare wheel crank
Box
One
| Weight | -- |
|---|---|
| Tare weight | 8.5T-10T |
| Payload | 60T-80T(25m3—37m3) |
| Axle weight | 14T/16T/20T per axle |
| Specification | -- |
| Axle number | 3 |
| Axle brand | Fuwa/hj/bpw |
| Suspension | Mechanical suspension |
| Kingpin | JOST50#/90# traction pin |
| Dimensions(L*W*H) | 10950X2500X3900mm(outside) 10000X2300X600mm(inner) |
| Rim | 9.00*22.5 zhengxing brand 12[ieces |
| Lifting system | Full set of hyva hydraulic system |
| Steel spring | 10pieces |
| Tire | --- |
| Tire specs | 12.00R22.5 triangle brand |
| Number of tire | 12 pieces |
| Spare tire carriers | 2 pieces |
| Frame | -- |
| Frame beam | Upper and lower plate is 20mm.middle is 10mm(double/three plate) height is 500mm |
| Frame floor | The thickness is 3mm flat bed |
| Brake | -- |
| Brake brand | Kemi brand of china |
| Brake chamber | Two double and two single chamber(TKL brand) |
| ABS | Kemi brand of china (4s/2m) |
| Electrical system | -- |
| Voltage | 24v |
| Receptacle | 7ways(7wire harness) |
| Light color | -- |
| Side marker lamp | orange |
| Rear lamp | red |
| Turn signal lamp | orange |
| Support leg | Weight |
