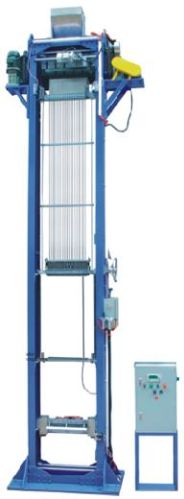

Three Center Guarantee Filling Machine

1. PLC automatically controlled, human-computer interface and control the oscillation frequency by electron speed regulator

2. lt adopts three guide tubes structure which has solved the problem that it is difficult to guarantee the center degree of long tubes

3. lt adopts self-locking powder device which assure that almost zero MgO loss.

4. Vibrator guarantee the powder density and the density could be above 2.20g/cm3

5. The guide tube moving speed controlled by frequency control.

6. Big and small powder box design. Electronic adjusting the exerted length of terminal pin.

7. indicate how to clear fault automatically.
8. 12,18,24,36 and 48 position machines are available to suit customer's production requirements.

9. Tube diameter : below Φ16mm, tube length:beow 6000mm. lt can be custom-made.

1. Power supply: 220V, 50Hz

2. Rated power: 2.0KW

3. Air supply: 5 -7kg/cm2

4. Efficiency: 6500pcs/8h(tube length 250mm)

5. Size (LxWxH) : 1800x850x3300(mm) (1meter tube)

6. Weight: 600kg
