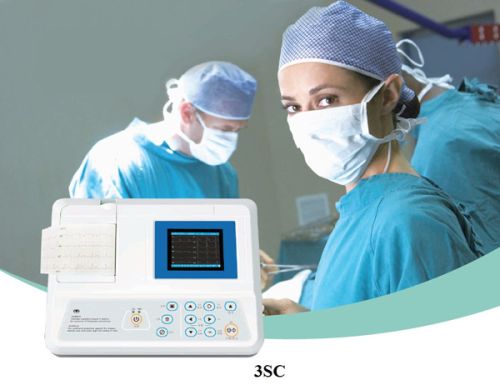

THREE CHANNEL ELECTROCARDIOGRAPH

Product Specifications

• Frequency Response0.05~160 Hz (-3db)
• SensitivityAuto, 2.5, 5, 10, 20. 40mm/mV
• CMMR?100dB (with AC Filter)
• Noise level<15µVp-p
• Work modeManual / Auto / Physical Examination / Storage
• LeadStandard 12 leads
• Power supplyAC 110-230V (±10%), 50/60HZ (±1Hz), 60VA DC Built-in rechargeable battery. i4.4V(2000mmAh)
• Paper speed6.25, 12.5, 25, 50mm/s (±3%)
• CommunicationRS232/ USB port
• Time constant≥3.2s
• Inter-channel interference≥0.5mm
• Paper80mm x 20m Roll Paper
• FilterAC Filter: 50Hz / 60Hz EMG Filter :25Hz/45Hz Anti-Drift Filter: 0.15Hz (Adaptive)
• Input impedance≥50MΩ
• Dimension / WeightWeight300mm x 230mm x 75mm / 2.8Kg
• Input circuit current≥0.05µA
• Load Acquisition12bit/1000Hz (synchronously 12 leads)
• Recording mode3ch, 3ch+ Default Man. Mode is 3ch format Default Auto.Mode is 3ch+ format
• Calibrating voltage1mV±2%
• Voltage tolerance≥500mV
• Input circuitFloating; Protection circuit against Defibrillator effect
• Patient current leakage≤10µA
• Supply TypeManufacturer, Exporter, Supplier, Retailer, Trader
