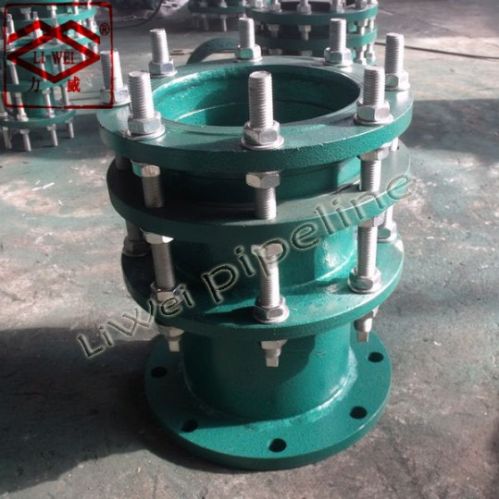

Three-flange Force Transferring Metal Flexible Joint

we offer three-flange force-transferring metal pipe coupling flexible joint:
it is widely used in water supply and drainage, recycled water, air conditioning and heating, ship, water pump, and compressor, etc.
they are low cost vibration and deflection absorption in fluid conveyance pipes. the bellow consists of two symmetrical connecting end, either threaded unions for small nominal bores or flanged ends for large nominal bore pipelines.
flexible joint features:
metal pipe coupling flexible joint is made up of cover, sleeve, limited short pipe and trapezoid sealing ring. it is used for water supply and drainage engineering, urban tap tap, pump room water meter and valve, and make them more convenient when installation and conversion, as well as play a good filling effect on the scaling problem of the long pipeline caused by temperature difference.
metal pipe coupling flexible joint installation note:
1. the adjustable joint installation length should be between the maximum and minimum length, and can be adjusted according to actual situation.
2. when installation, should loosen the pressure plate bolt, adjust good to install length, then tighten bolt diagonally, do not partial pressure, seepage effect.
3. the metal pipe coupling flexible joint should be installed after the check valve.
4. if the metal type expansion joint is used aerially, corresponding fixed bracket should be installed on both ends of the joint, it itself is not under axial tension, so protection pulled off equipment is necessary.
5,we can design and make the products according to your drawings and techincal requirements.the quality is better and the price is lower than the similar products another company make.
