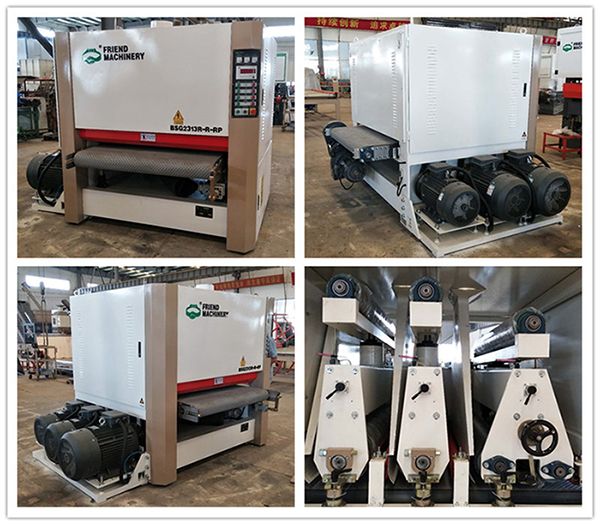

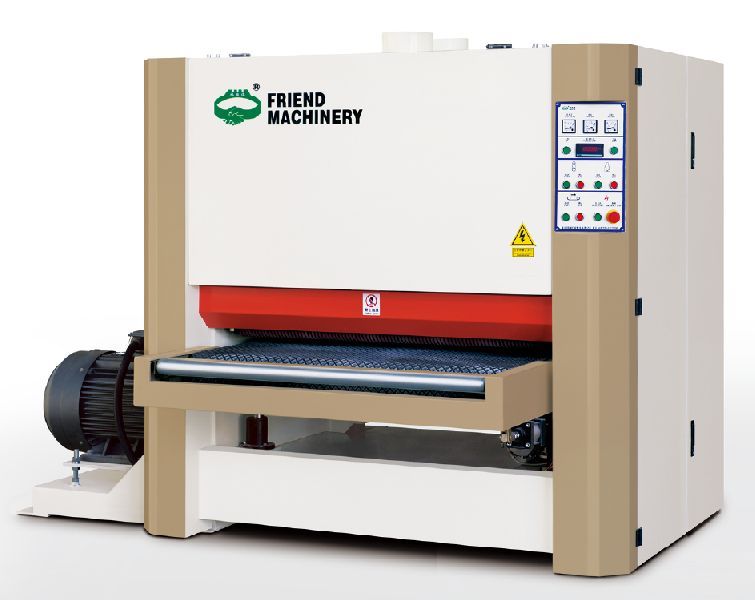

Three Heads Wide Belt Sander

wide belt sanders continue to be susn’s primary product line with customers located worldwide. the sander is primarily designed for calibrating and polishing of plywood, blockboard, wood plastic board, particleboard, mdf board, etc.

model no.  bsg2313r-r-rp

trademark  friend

working width  40-1300mm

working thickness  2.5-80mm

working length  ≥650mm

feeding speed  6-30m/min

sanding belt speed  22m/s,22m/s,18m/s

sanding belt size  1330×2200mm

main motor power  37kw,30kw,22kw

total motor power  93.55kw

working air pressure  0.55mpa

compressed air consumption  0.16m³/min

air speeding of dust suction  25-30m/s

air volume of dust suction  20000m3/h

overall dimension  2500×2350×1950mm

net weight  4500kg
