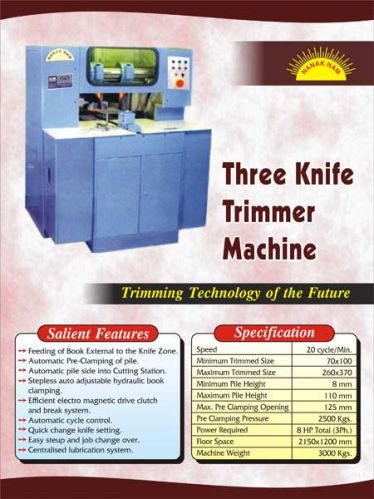

Contact Supplierwe are offering three knife trimmer machine.profile: robustly constructed and versatile machine with single or flow line production suitable for trimming of books, booklets, journals, directories, dairies and periodicals, with precise trimming of three sides in one cycle. Giving an output production of 1200 cycles per hour. Salient features: feeding of book external to the knife zone. Automatic pre-clamping of pile. Automatic pile side into cutting station. Stepless auto adjustable hydraulic book clamping. Efficient electro magnetic drive clutch and brake system. Automatic cycle control. Quick change knife setting. Easy setup and job change over. Centralised lubrication system. Technical specifications : speed 20 cycle/min. Minimum trimmed size 70x100 maximum trimmed size 260x370 minimum pile height 8 mm maximum pile height 110 mm maximum pre clamping opening 125 mm pre clamping presser 60 kgs hydraulic clamping pressure 2500 kgs power required 6 h.p. Total ( 3 phase ) floor space 2150x1200 mm machine weight 3000 kgs
