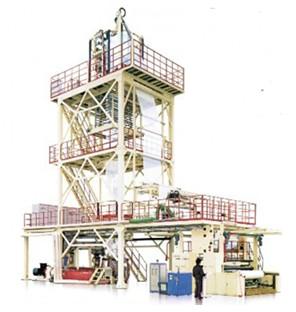

Three Layer Coextrusion Wide Film Blowing Line

We offer pecification for three-layer co-extrusion
greenhouse film blowing machine
model 3fm5300-1 3fm6300-1 3fm7300-1 3fm4500-1 3fm5000-1 3fm5500-1
3fm2800-1 3fm3500-1 3fm4000-1
max. Width (mm) 10000 12000 14000 16000 18000 20000
film thickness (mm) 0.06-0.12 0.06-0.12 0.06-0.12 0.06-0.12 0.06-0.12 0.06-0.12
compounding layers 3 3 3 3 3 3
applied material lepe, lldpe, eva lepe, lldpe, eva lepe, lldpe, eva lepe, lldpe, eva lepe, lldpe, eva lepe, lldpe, eva
max. Output（kg/h） 560 900 1000 1100 1200 1800
extruder 90/30×3 120/25×2 150/30b×1 120/30×3 120/30×2
150/30b×1 150/30b×2
150/30b×1 18/30b×3
die diameter (mm) ∮1400 ∮1600 ∮1800 ∮2100 ∮2400 ∮2600
power for main motor (kw) 100×3 110×2200×1 132×3 132×2200×1 200×228×1 280×3
traction speed (m/min) 2-20 2-20 2-20 2-20 2-20 2-20
traction height (m) 16 20.6 21 21 27 32
vane outer diameter (mm) ∮3600 ∮3600 ∮3600 ∮3800 ∮4000 ∮4500
coiling mode double station double station double station double station double station double station
total power 690 900 1000 1050 1100 1200
overall sizes 15.4×8.6×16.5 17.4×11.2×21 17.4×11.2×21.5 18.6×12.2×24.5 18.5×13.2×27 20×20×32.5
