Three Layer Plastic Machine Cast Film

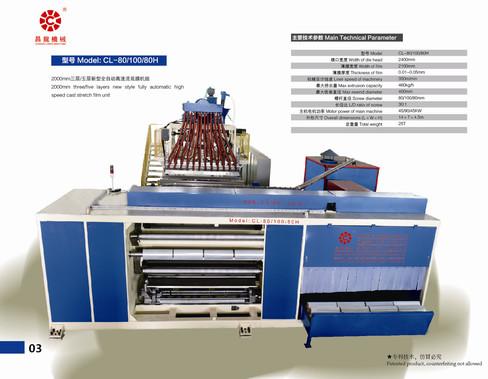

Three Layer Plastic Machine Cast Film  -CL-8010080H Based on 30 years professional skills and continuous improvement, this new style high speed stretch film machine unit is designed for one side sticky or two sides stickythree- layer five-layer stretch film, cast stretch film, cling film,embossing film, protective film etc., mainly adopts LLDPE ,recycled LLDPE, CPE, PP, PE as raw material. Three Layer Plastic Machine Cast Film   Main Technical Parameter: Model: CL-8010080H Width of Die Head: 2400mm Width of Film: 2100mm Thickness of Film: 0.01-0.05mm Structure of Film Layers: ABC or ACBCA Liner Speed of Machinery: 350mmin Max Extrusion Capacity: 460kgh Max Rewind Diameter: 400mm Screw Diameter: 8010080mm LD Ratio of Screw: 30:1 Motor Power of Main Machine: 459045kw Total Power: 150-300kw Overall Dimensions(L*W*H): 14*7*4.5m Total Weight: 25T Three Layer Plastic Machine Cast Film  Features 1.Linear Speed (max): 350mmin, 20 microns thickness can getcapacity 10 tons per day. 2.Motor connect with gear boxdirectly, greatly improves screw extrusion per minute, improves whole machinecapacity. 3.Ceramic cast aluminium thermostat screw heater, to make the LLDPE with perfect plasticizing properties. Stretch Film pplication; The film can bewidely used in wrapping of pallet packaging, storage packaging, manual packagingand so on. Certificate Three L
