1.import superior drill rows and electronic appliance.
2.the machine base is made of superior steel material, heat-treated under high intensity. Non-deformation.
3.the moving parts adopt quality anti-wear materials, durable in use.
4.gauge positioning, easy operation, prompt and accurate working.
Technicai data

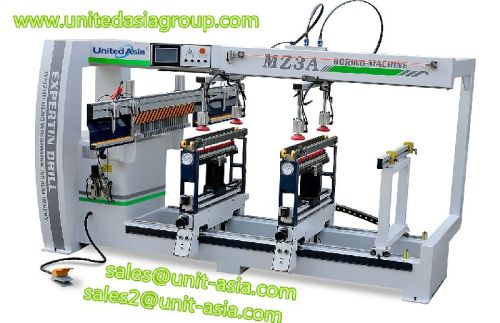

model mz3a
max.drilling diameter max.=35mm d=13mm
max.drilling depth max.=60mm
total number of spindles 21*3=63�
installation diameter of drill bit shaft 10mm
max.center distance between holes l max.*b max.=1700*640mm
min.center distance between holes l min.*b min.=130*32mm
spindle speed 2840rpm
total power 4.5kw
overall dimension 3000*2500*1620mm
weight 1000kg
weight air pressure 0.5-0.6mpa
