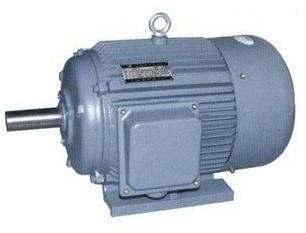

Three Phase Asynchronous Motors, Brand Name : Nanfang

we are offering three phase asynchronous motors. y series motors are three phase asynchronous squirrel-cage induction motors, in cast iron execution, totally enclosed fan cooled (tefc).
y motors are available in frame sizes y 80-180 for one-speed in 2-4-6 and 8 poles, 10 poles on request. various combinations of two- and multi speed in frame size y 80-280, and unwounded frame size y 80-180 in 2-4-6 and 8 poles, including spare parts.
the terminal box is standard right hand mounted, a terminal box on the left hand side is available on request.
operating condition:
1. ambient temperature: -15o c~+40o c
2. altitude: not exceed 1000m
3. power range: 0.55-22kw
4. rated voltage: 380v
5. rated frequency: 50/60hz
6. protection class: ip44
7. insulation class: b
8. cooling method: ic411
9. working duty: s1 (continuous)
10. basic installation method b3 b35 b5
11. frame size: h80-180
12. basic pole: 2/4/6/8/10
13. connection method: "y" connection for 3kv and below, "î� " connection for 4kv and above.
advantage:
1. high starting torque
2. low noise
3. little vibration
4. safe operation
5. easy maintenance
application:
y series motors are widely used for driving various kinds of mechanical equipment without specific requirement, such as machine tools, pumps, blowers etc.
