Contact SupplierINTRODUCTION:

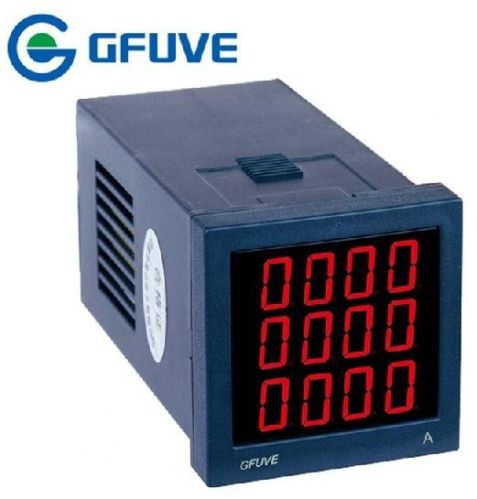

FU9000 series three phase current and voltage display meter has replaced the traditional digital meters. This product has the function of traditional products, also has programmable functions, DC4-20mA analog output, RS485 communication interface port and the switching power output functions. This product has high accuracy, excellent EMC and good appearance and so on.
TECHNICAL PARAMETER
Programmable PT, CT ratio, address, baud rate and other parameters.
Accuracy 0.5 class
Display Figures 4 bits
Rated input Current: 1A, 5A
Voltage: 100V, 220V, 380V
Over Range Current: 1.2 times continuous, 10 times10s ;
Voltage: 2 times continuous
Frequency 50±5Hz or 60±10Hz (Option)
Power Supply AC220V ± 20% or DC100-300V (Customization)
Power consumption
