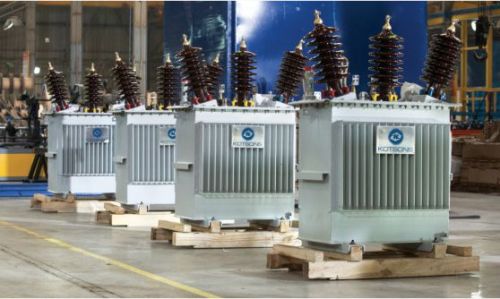

Three Phase Distribution Transformers

KOTSONS manufactures a wide range of distribution and medium power transformers. These transformers can be free breathing or hermetically sealed. Conventional transformers are fitted with a conservator with breather for free breathing while hermetically sealed are without breathing with bolted cover.
• Applicable standards : IEC / ANSI /BS / IS / SABS/ CENELEC / GOST

Wide range of transformers in accordance to above standards with different combinations can be manufactured. The transformers are generally designed and manufactured to comply with the IEC publications 60076.
,
Range : 25 kVA - 3150 kVA,
Insulation level £ 12 KV £ 24 KV £ 36 KV
• Indoor / Outdoor installation
• Conductor : Copper or Aluminum as per customer requirement
• Core : CRGO / Amorphous as per customer requirement
• 3 D Core type can also be supplied
• CSP ( Completely Self Protected ) feature can be provided up to 400 kVA
• Maximum ambient temperature : as per customer’s specification
• Top oil Temperature rise : as per customer’s specification
• Average winding temperature rise : as per customer’s specification
• Hermetically sealed type (with gas cushion / fully filled) / Conventional type
  (with Conservator)
• Color : as per customer’s requirement
• Cooling : ONAN/ONAF as per customer’s requirement
• Cooling arrangement : Corrugation or Pressed Steel Radiators
• On Load Tap Changer with RTCC & AVR, can be provided above 500 kVA, if
   required
• Safety devices can also be provided upon request
• Other optional fittings as required can be provided upon request
