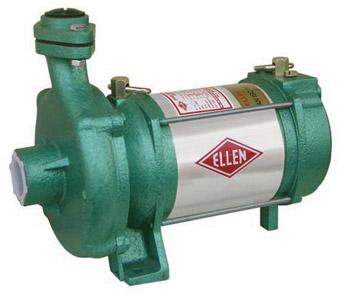

Three Phase Horizontal Openwell Submersible

Get Latest Price

Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

View More Details

Send Enquiry

Company Information

Ellen Pumps

Takara Basthi, Secunderabad, Telangana

View Number

Member Since 7 Years
Nature of Business Retailer

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Ellen Pumps offers a wide range of single phase & Three phase horizontal openwell Submersible Monobloc pumpsets. These Pumps are manufactured as per Indian Standard IS: 14220 & IS:9283 with strict quality control to ensure efficient & reliable operation.Ellen Pumps offers a wide range of Submersible pumpsets sutiable for 75mm and 100mm Borewell. Ellen Pumps are manufactured as per Indian Standard IS:8034 & IS:9283 with strict quality control to ensure efficient & reliable operation.

MOTOR

PUMP

Totally enclosed,Squirrel Cage Induction motor.(TEFC)
Motors are designed to operate under wide voltage, 140-240 in 1 Phase and 160-440 in 3 Phase
Motor body made of Cast Iron/SS
Water lubricated and fitted with high quality oil seal.
All rotating parts are dynamically balanced for longer bearing life and vibration free smooth and silent operation.
Rotor is coated with polyurethane paint for rust proofing
Special water resistant PVC insulated high quality copper winding wire.
Designed for easy rewinding

Well designed sleeves and thrust bearing of adequate capacity for longer life.
Stainless shaft and sleeves for extended life.
Impellers desinged to give high discharge and head.
Designed for optimum efficiency and are energy efficient.
Suitable for applications where wide water level fluctuations take place in suction side.

Boresize		75 / 100mm and above
Range	1 Phase	0.5 HP - 2 HP
Range	3 Phase	3.0 HP - 10 HP
Supply	1 Phase	230 V / 50 Hz ACC
Supply	3 Phase	415 V / 50 Hz AC
Head Range	1 Phase	Upto 36mm
Head Range	3 Phase	Upto 60m
Discharge	1 Phase	Upto 560 LPM
Discharge	3 Phase	Upto 1330 LPM
Outlet Size		50,65,75mm
