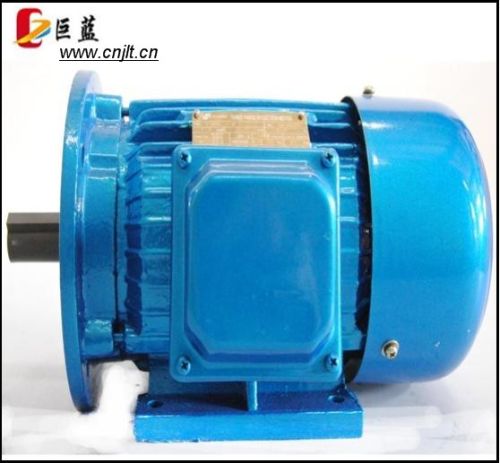

Contact SupplierWe are offring y series three phase induction motor 5.5kw.
y series motor 380v 50hz
1) frame sizes: 132
2) rated power: 5.5w
3) rated voltage: 380/660v
4) frequency: 50hz, 60hz
5) protection class: ip54
6) insulation class: b,or f
7) materials: cast iron(63-355), aluminum (frame 63-160)
8) eff: eff3, eff2, eff1
9) poles: 2, 4, 6, 8,
10) cooling method: ic411 (total-enclosed fan-cooled type)
11) mounting types: imb3, imb5,imb35
12) operating mode: s1
13) connection: "y" type for 3kw and downwards, "d" type for 4kw and upwards
14) ambient temperature: -35oc and 40oc
15) the altitude should be lower than 1,000m above the sea level
16) relative humidity: not higher than 90%
17) special motors can be designed according to customers' requirements
inner packing:
1) frame 63-112: foam boxes
2) frame 132-315: wooden boxes
