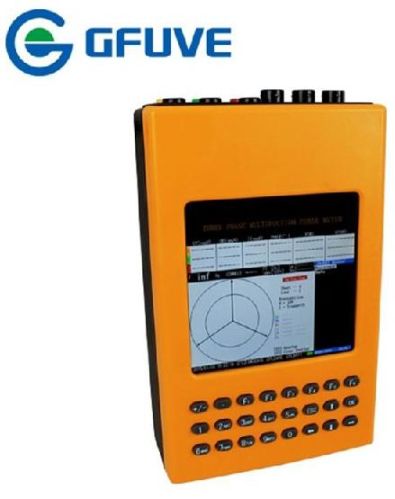

THREE PHASE MULTIFUNCTION PHASE ANGLE CURRENT CLAMP METER

₹ 1.81 Lakh / Set

MOQ1 Set(s)
Accuracy class 0.5%Power supply AC 85-265V 50/60Hz or Li-battery 5000mAh
Power consumption ≤5VAU1, U2, U3 Range 0-480V
Communication Port RS232Warming-up time < 5min
Resolution 0.001VAccuracy 0.2%
Supply TypeManufacturer, Exporter
Preferred Buyer Location All over the world

Company Information

Member Since 12 Years
Nature of Business Manufacturer
Year of Establishment 2005

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

Power consumption ≤5VAU1, U2, U3 Range 0-480V
Communication Port RS232Warming-up time < 5min
Accuracy class 0.5%Power supply AC 85-265V 50/60Hz or Li-battery 5000mAh
I1, I2, I3 Range 1mA-10A or 50mA-200A or 50mA-500AResolution 0.5mA
Resolution 0.001VAccuracy 0.2%
Dimensions (W×D×H) (mm) 245×162×60Weight (kg) 1 (mains) 6.5 (appendix and box)

Introduction:
it can be applied to electric power dispatching center, relay protection department or relay protection in power plant. Its metric division class makes it suitable for petroleum, railways and the iron and steel industries also.
features
1.simultaneously measuring three-phase voltages, current, power, frequency, power factor, phase, etc.
2.display vector map for the use of user directly.
3.horizontal liquid crystal big screen tft displays all electric parameters;
4.the smallest current it can measure is 1 ma, 2 ma above can display vector diagram;
5.small volume, light weight and the operation is simple, convenient;
6.dsp digital signal processing chip, wide measuring range, high accuracy, good stability;
7.it can store data; data can be using computer software to upload for management;
8.range switches automatically, software for be calibrated.
