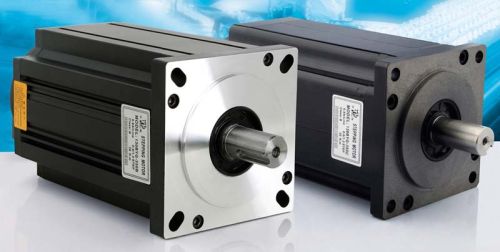

Contact SupplierBased in Wenling City, China, we humbly present ourselves as the most applauded manufacturer, exporter and supplier of Three Phase Stepper Motor (130 BYG). Manufactured under the supervision of experienced professionals, our Three Phase Stepper Motors work with a Step angle accuracy of up to 5%. The maximum temperature rise it can handle is 80ºC. The most suitable temperature for the motor to give best results is -20ºC~+ 50ºC. These Motors come with a high insulation resistance and work with high voltages and Dielectric strengths. It belongs to Insulation class B.
| Motor Model | Step Angle | Holding Sorque (N.m) | (Drive) Operating Voltage (V) | Rated Current (X) | Phase Induction (mH) | Phase Resistance | Rotor inertia (Kg. cm2 | Weight (Kg) | Motor Length (mm) |
|---|---|---|---|---|---|---|---|---|---|
| 130BYG 350A | 1.2 | 24 | 220 | 6.8 | 16.2 | 0.96 | 26.87 | 14 | 188 |
| 130BYG 350B | 1.2 | 28 | 220 | 6.8 | 19 | 1.17 | 33.97 | 17 | 220 |
| 130BYG 350C | 1.2 | 35 | 220 | 6.8 | 24 | 1.39 | 41.4 | 19 | 252 |
| 130BYG 350D | 1.2 | 50 | 220 | 6.8 | 18.3 | 1.02 | 47.3 | 20.5 | 280 |
| 130BYG 350A-X | 1.2 | 22 | 220 | 6.8 | 9.9 | 0.89 | 26.8 | 14.58 | 189 |
| 130BYG 350B-X | 1.2 | 28 | 220 | 6.8 | 11.3 | 0.8 | 34.9 | 17.14 | 236 |
| 130BYG 350C-X | 1.2 | 37 | 220 | 6.8 | 13.8 | 0.92 | 39.2 | 19.7 | 256 |
| 130BYG 350D-X | 1.2 | 50 | 220 | 6.8 | 18.3 | 0.99 | 42.5 | 20.5 | 271 |
