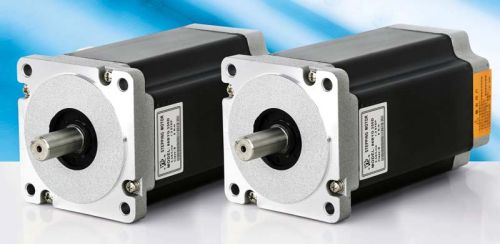

Three Phase Stepper Motor (86 BYG)

Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

We proudly present ourselves as the most reliable manufacturer, exporter and supplier of Three Phase Stepper Motor (86 BYG) based in Wenling City, China. Manufactured under the supervision of experienced professionals, our Three Phase Stepper Motors work with a Step angle accuracy of up to 5%. The maximum temperature rise it has handle is 80ºC. The most suitable temperature for the motor to give best results is -20ºC~+ 50ºC. These Motors come with a high insulation resistance and work with high voltages and Dielectric strengths. It belongs to Insulation class B.

View More Details

Send Enquiry

Product Details

Specifications

Motor Model	Step Angle	Holding Sorque (N.m)	(Drive) Operating Voltage (V)	Rated Current (X)	Phase Induction (mH)	Phase Resistance	Rotor inertia (Kg. cm2	Weight (Kg)	Motor Length (mm)
86 BYG 350A	1.2	2	60	5.2	2.4	0.5	1.49	1.84	78
86 BYG 350B	1.2	4	60	5.6	4.5	0.71	2.55	2.95	99
86 BYG 350B-5	1.2	5	60	5.6	5.5	0.83	3.21	3.52	110
86 BYG 350C	1.2	6	60	5.8	6.5	0.95	3.99	3.9	125
86 BYG H350A	1.2	2	220	1.75	4	1.11	1.49	1.98	78
86 BYG H350B	1.2	4	200	2.1	7.4	1.4	2.55	3	99
86 BYG H350C	1.2	6	220	3.2	12.8	1.87	3.96	4.4	135
86 BYG H350D	1.2	8	220	4	16.2	2.01	4.95	5.9	145
