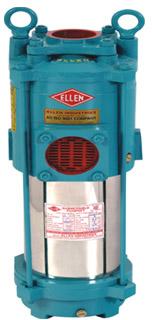

Three Phase Vertical Openwell Submersible Pumpset

Get Latest Price

Head RangeUpto 100m
Range3 HP - 15 HP
Boresize75 / 100mm and above
DischargeUpto 1110 LPM
Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

View More Details

Send Enquiry

Company Information

Ellen Pumps

Takara Basthi, Secunderabad, Telangana

View Number

Member Since 7 Years
Nature of Business Retailer

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Outlet Size50,65,75mm
Head RangeUpto 100m
Supply415 V / 50 Hz AC
Range3 HP - 15 HP
DischargeUpto 1110 LPM
Boresize75 / 100mm and above

Ellen Pumps offers a wide range of Vertical Openwell Submersible Monobloc pumpsets. These Pumps are manufactured as per Indian Standard IS: 14220 & IS:9283 with strict quality control to ensure efficient & reliable operation.

MOTOR	PUMP
Totally enclosed,Squirrel Cage Induction motor.(TEFC) Motors are designed to operate under wide voltage, 0160-440 in 3 Phase All rotating parts are dynamically balanced for longer bearing life and vibration free smooth and silent operation. Rotor is coated with polyurethane paint for rust proofing Special water resistant PVC insulated high quality copper winding wire. Designed for easy rewinding	Well designed sleeves and thrust bearing of adequate capacity for longer life. Stainless shaft and sleeves for extended life. Impellers desinged to give high discharge and head. Designed for optimum efficiency and are energy efficient. Suitable for applications where wide water level fluctuations take place in suction side.
