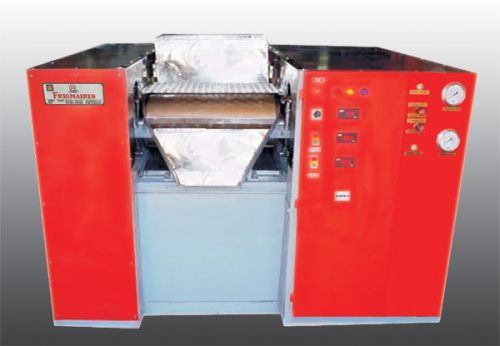

Three Roll Mill

Used for grinding & dispersing of inks, paints, chocolates, carbon pastes, polymers, rubber, coatings etc. The machine consists of three rollers operating at different speeds. The material is fed between the first two rolls and is discharged from the final roll by a scrapper blade. The paste passing between the rolls is subjected to high stress & frictional forces resulting in the breaking up & separation of the particle to produce a finely dispersed film. The gap adjustment between the rolls can be done manually or hydrualically. Rollers are independently cooled by a water circulating facility. Rolls are available in S.S. 304 or Chilled Cast Iron construction.
