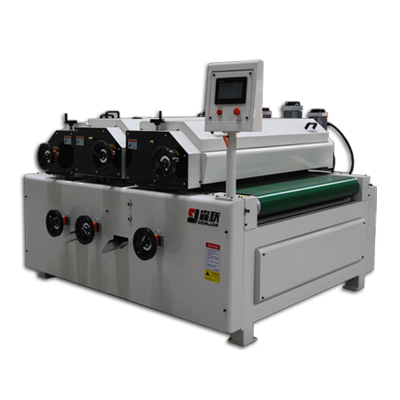

Mechanical Three-Roller Coating Machine For Woodworking

Three-roller coating machine
function:
this machine combines roller coating and putty filling, it applies the single rubber roller and stainless steel roller to cover the liquid paint(usually primer) on board circularly which without any paint waste and environmentally friendly. And it uses the putty filling structure with heavy stainless steel roller to press putty into the pores on board. This machine is useful for saving the space and investment, but it will increase the process steps.
�application filed:
furniture, door, wardrobe, cupboard, floor, etc.
�application board:
solid wood board, ply, mdf, calcium silicate board, cement fiber board,
etc.
�application paint:
uv primer, water paint, putty paint, special paint, etc.
Technical parameters
optional working width
600mm800mm1300mm
max working thickness 100mm
min working length 300mm
working speed 0-25mmin
paint pump 0.6mpa, 10l,
stainless steel roller î¦200mm
rubber roller epdm, ï�205mm, h45 degrees
full power 10.87kw 380v
estimated weight 1400kg1600kg2200kg
overall dimensions 2350*1700*1600mm 2350*1900*1600mm 2350*2300*1600mm
main parts
electric motor bmemb
frequency converter shihlin
main bearing nsk from japan
conveyor ammerraal from holland
paint pump vacuum diaphragm pump
electrical appliance chint
control system roller coating and putty filling intelligent control system, lcd screen
optional rollers for different process epdm roller, polyurethane rubber roller
