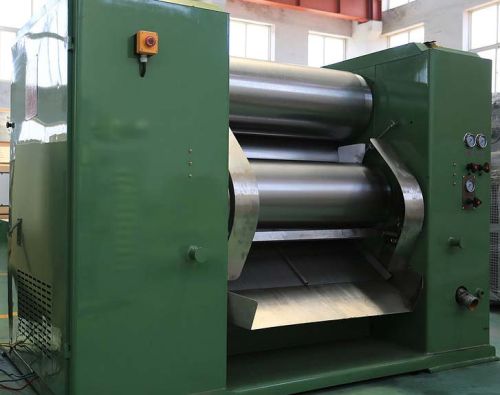

Three Roller Mill, Brand Name :  Liaohai Pear

Quick Details
Condition: New
Type: Grinder
Product Type: Paint
Place of Origin: Liaoning, China (Mainland)
Brand Name: Liaohai Pearl
Model Number: 400-1300
Voltage: 380V
Power(W): 18.5KW/22KW
Dimension(L*W*H):1350X1300X1000mm
Weight: 1800kg
After-sales Service Provided:Engineers available to service machinery overseas
Roller diameter (mm): 200mm
Length of roller (mm): 600mm
Ratio of speed: 1:3:9
Roller material: Super alloy (aluminum AI2O3 optional)
Features
1.Taiwan hydraulic pressure station, the United States Parker hydraulic joints, Germany BENTELER precision seamless tube ensure
the stability of the system;
2.Germany Siemens PLC system makes the product more accurately to be controlled (optional);
3.The rollers pressure and the rollers gap can be set and controlled, so as to realize the stable and consistent quality.
4.Adopting manual gap adjusting makes the machine produce without human influenced in low pressure.
Model
DYS200-600
DYS300-800
Roller diameter
200mm
300mm
Roller working length
600mm
800mm
Speed ratio
1:3:9
1:3:9
Main motor power
18.5KW/22KW
30KW/37KW
Weight of machine
1800kg
2800kg
Allover dimension
1350�1300�1000mm
1850x1500x1450
