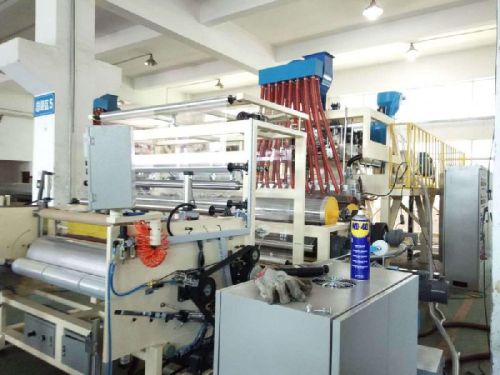

Contact SupplierUpdated Three Screws 7010070A Stretch Film Machine---PE Film Making Machine Combined with Italy and Amercian high-tech to produce high plasticity,this machine is based on our long time manufacturing experience and customer's actual operate, designed for three or five layers stretch film , cling film , and protective film, which is very easy to operate. 7010070A Stretch Film Machine 7010070A Stretch Film Machinery 7010070A Stretch Film Unit Technical Details Film Structure: ABC or ACBCA Liner Speed of Auxiliary Machine : 200mmin Total Max Extrusion Capacity: 380kgh Max Rewind Diameter: 400mm Name of Machine Model: CL-7010070A Width of T-die: 1850mm Width of Product Film: 1500mm Available Thickness of Film: 0.01-0.05mm Screw Diameter: A  Screw 70mm             B  Screw 100mm             C  Screw 70mm LD Ratio of Screw: 30:1 Motor Power of Main Machine : 379037kw Total Power: 50-220kw Overall Dimensions(L*W*H): 11.5*4.3*4.5m Total Weight : 18.2T Features 1.Vacuum devices help  improve the coolng effect of the first cooling roller and then improve the quality of product film. 2.The installation of fence around the screw stairs is designed  friendly for user which ensures the safety of operation. 3.Simens PLC and touch screen cen
