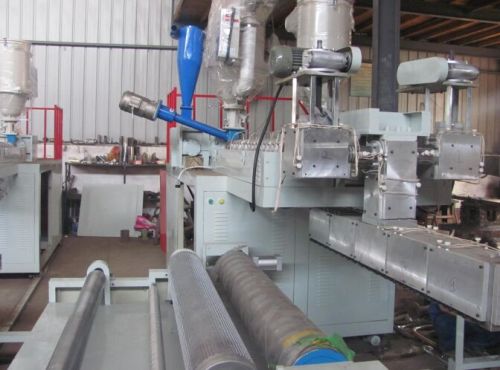

Three-seven Layer Air Bubble Film Making Machine

Multi layer PE air bubble film making machine can make compound bubble film from three layers to seven layers. With two or three extruders, combined with lamination equipment, the lamination material can be aluminum foil, craft paper, PE film etc. The compound air bubble wrap film can be used for packing, mostly to make post mail envelop. The machine can be equipped with auto cutting and auto winder changing, auto loader, hydraulic pressure screen changer, online recycling equipment.  Main Technical Variables: Model FTPEG-1500 FTPEG-1600 Diameter of Screw Stem φ75mm , φ60mm φ75mm , φ60mm LD Ratio of Screw 30:1 28:1 Material of Scerw & Barrel 38 CrMoALA 38 CrMoALA Width of T-die Head 1150 mm 1750 mm Heating Way Casting-aluminum heating device Casting-aluminum heating device Width of Bubble Roller 1080 mm 1680 mm Width of Products 1000 mm 1600 mm Thickness 0. 06-0. 30 mm 0. 06-0. 30 mm Main Motor 7.5 kw , 15kw 18.5 kw , 15kw Tractiong Motor 1.5 kw*2 1.5 kw*2 Total Power 86 kw 112 kw Rewinder Turnover duplex turret rewinding type Turnover duplex turret rewinding type Max. Output 90 kgh 150 kgh Linear Speed 1000 mh 1000 mh.
