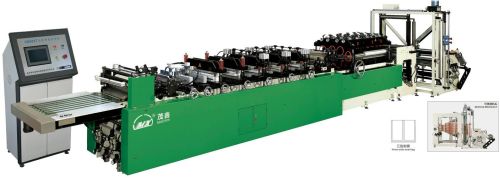

Three-side Seal Bag Making Machine

We are offering three-side seal bag making machine. Features：
it adopts tri-servo motor location system controlled by computer, main motor frequency converter speed control, double photocell eyes automatic correction in material feeding device. Automatic back feeding by frequency conversion. Vertical type folding device , it can automatic feeding the material. Equipped with removable fixed cutter, can minitrim the front ,rear, slope position of the cutter. It is equipped with splitting device for multi-row & double -side bags, material –winding conveying device. It can automatically count the batch and amount, eliminate static and dispose the material edge. Its pressed roller and its tension both adopt pneumatic control. It has the function of multiple conveying, high-position stop, misplacement trailing stop and alarm stop for out of material. It features in high precision, fast speed, regular and beautiful bag making, so it is the ideal equipment for manufacture of laminated plastic bag.
main technical parameters：：
model mxzd-400 mxzd-500 mxzd-600
material all kinds of laminated plastic film
material size (max) 840xφ600min 1040xφ600min 1240xφ600min
film thickness 0.04-0.18mm 0.04-0.18mm 0.04-0.18mm
speed of sealing & cutting 40-180pcsmin 40-180pcsmin 40-180pcsmin
rows of bag making 1-2 row 1-3 row 1-4 row
maximum linear speed 40mmin 40 mmin 40mmin
multiple conveying over 380mm over 380mm over 380mm
multiple conveying about28kw about36kw about45kw
control system plc control system or industry control system
material driving mechanism tri-servomotor driving system
material–feeding system automatic feeding the material device,ｋshape rack
brake device constant tension encoder，magnetic-power control system
temperature control system pid internal structure pid or external structure pid
