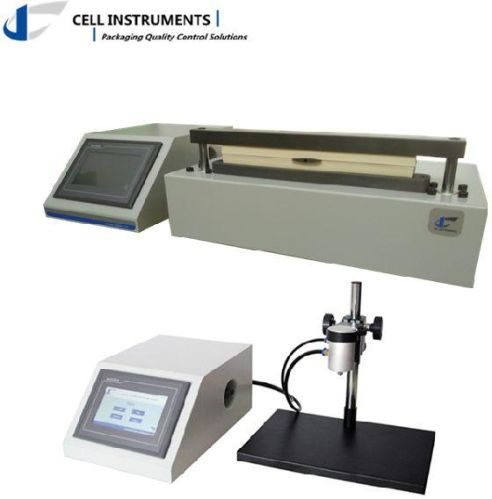

Three Side Seal Pouch Leak Tester

We offer three side seal pouch leak tester is suitable for the quantitative determination of sealing strength, heating sealing quality, burst pressure and leakage of flexible and aseptic packages.
Features
1. three test modes of burst, creep and creep to failure are available.
2. plc programmable logic controller realizes precise pressure and time control.
3. 7 inch tft touching screen for convenient parameter setting and test operation.
4. multiple groups of test parameters can be save to avoid repetitive setting.
5. test result auto statistics and storage.
6. program customization available.
Technical specifications
pressure range 0 ~ 600 kpa; 0 ~ 87.0 psi (standard)
inflating head φ4mm (standard)
gas pressure 0.4 mpa~0.9 mpa
port size φ6 mm pu hose
dimensions 400 mm (l) × 270 mm (w) × 180 mm (h)
pedestal size 375 mm (l) × 275 mm (w) × 345 mm (h)
power ac 220v 50hz
standards
iso 11607-1, iso 11607-2, astm f1140, astm f2054, gbt 10440, gb 18454, gb 19741, gb 17447, gbt 17876, gbt 10004, bbt 0025, qbt 1871, ybb 00252005, ybb 00162002
