Three side seal, Zipper

Listing ID #3890411

Get Latest Price

Max 35 KW, 3 ph, 415 (A.C.), 50 HzPrime Power
Servo Motor: 26 N-M / 2000 RPM Main Motor 5 Hp / 1440 RPM, 3 Ph. Unwind Motor (4 Nos.) 1HP, 1440 RPM 220V A.C. 3 Ph.Air Consumption***
Front & Back Eyemark Servo Synchronisation Both side Guesset Synchronisation Same Roll Stand-up Pouch Former & Guesset Assembly D-Punch / Star Punch / Butterfly Punch etc. Secondary Film Roll Unwinding unit (1000mm).Elect. Power Consumption**
Optional Attachment
Supply Type Manufacturer, Exporter, Supplier

Preferred Buyer From : All over the world

View More Details

Send Enquiry

Product Details

8 CFM, 6 Bar Pressure (Water Contain less than 0.01%) Water Consumption
Diameter Main Unwind (mm) Max. 600 Bottom Unwind (mm) Max. 500
10-15 Ltr. / min. 8-12°C at 2 Bar Pressure. * Operational speed depends upon Laminate Thickness, Composition and Pouch Size. ** Electrical Power Consumption depends upon application of machine. *** Air Consumption depends upon optional attachments.
Front & Back Eyemark Servo Synchronisation Both side Guesset Synchronisation Same Roll Stand-up Pouch Former & Guesset Assembly D-Punch / Star Punch / Butterfly Punch etc. Secondary Film Roll Unwinding unit (1000mm). Elect. Power Consumption**
Max 35 KW, 3 ph, 415 (A.C.), 50 Hz Prime Power
Optional Attachment
Servo Motor: 26 N-M / 2000 RPM Main Motor 5 Hp / 1440 RPM, 3 Ph. Unwind Motor (4 Nos.) 1HP, 1440 RPM 220V A.C. 3 Ph. Air Consumption***

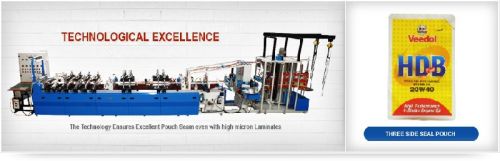

The Technology Ensures Excellent Pouch Seam even with high micron Laminates.
In built Water Cooling Technology provides leak proof product at high operating speed.
Stand up pouches from same laminate roll provides competitive advantage to end user.
Pouch length variation minimized to zero by servo driven Laminate Pulling Mechanism.

Pouch Size	Stand-up (W x H x G in mm)			Three Side Seal (W x H in mm)			Zip Pouch (W x H in mm)
	1 Line	Min	60 x 150 x 30	1 Line	Min	60 x 150	1 Line	Min	60 x 150
		Min	60 x 150 x 30	1 Line	Max	500 x 500	1 Line	Max	250 x 500
		Max	250 x 500 x 100	2 Line	Min	60 x 75	2 Line	Min	60 x 75
		Max	250 x 500 x 100	2 Line	Max	500 x 250	2 Line	Max	250 x 250
	2 Line	Min	60 x 70 x 30	3 Line	Min	60 x 75	3 Line	Min	60 x 50
		Min	60 x 70 x 30	3 Line	Max	500 x 160	3 Line	Max	250 x 160
		Max	250 x 250 x 100	4 Line	Min	50 x 60	4 Line	Min	60 x 50
		Max	250 x 250 x 100	4 Line	Max	500 x 125	4 Line	Max	250 x 125
Linear Speed*	Upto 20 Mtr. / Min			Upto 22 Mtr. / Min			Upto 20 Mtr. / Min
Roll Width	Main Unwind (mm) Min. 300 Max. 1000			Bottom Unwind (mm) Min. 60 Max. 200			Machine Size (L x W x H) in mm 11000 x 3000 x 2000

Interested in this product? Ask for more details & Latest Price from seller

Send Enquiry

Company Details

Packaging industry has experienced a dramatic change since last few years. Seductive looks, trendy styles, well conserving, hygienic and safe packaging material have been the prime aspects of this change. Now it has come to a long way with technical and scientific, developments, Now-a-days packaging of product means a lot not merely a container, but style, quality, health and a lot of other things.
Galaxy PackTeck Pvt. Ltd. has emerged as dynamic and progressive player in the ever growing field of Pouch making Machines. Established in 2001, Our company manufacturers, exports and supplies automatic high speed pouch making machines (Zipper Pouch, 3 side seal pouch, stand up pouch, Wooven Fabric Bag, Spout Pouch & center seal pouch).
Having more than 50 highly skilled and devoted staff. Our company also manufacturers semi-automatic filling, vacuuming, nitrogen flushing & sealing (VNS), Automatic wrapping, vertical pouch sealing machines to fulfill all your pouch packing requirements there are a large variety of models in industry specific standards and specifications.
The USP of is machines are maximum performance (even in harsh conditions) easy operation, reliability and above all cost effectiveness. Our machines comply international standards and can be customized depending on the customer requirements and samples. Meeting simple and complex needs.
Our quality conscious personnel always focus on producing defect free products with thorough inspection of every part and material. Our such concerted efforts have paid dividends in form of a rapidly growing client base in both Indian and global markets. We assure our clients complete product satisfaction with affordable price and prompt and effective services.
