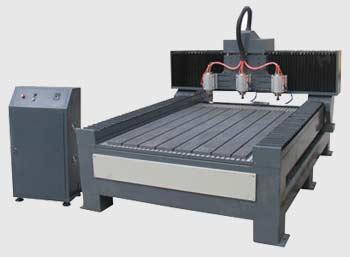

Three Stone Engraving Machine, Brand Name : RODEO

We are offering three stone engraving machine.
Stone engraving machine
first, the scope:
three-dimensional relief and line engraving natural marble, granite, artificial stone, tombstones, stone, tiles, glass, milestones and other materials, cutting down side, drilling a two-dimensional sculpture and batch processing.
Second, the performance characteristics:
imported square linear guide rail, double four slider, high precision bearing redundancy, smooth running, long life, under the knife precision.
The whole thick steel tubes welded together, to ensure that the body is not deformed, good rigidity and strength. The backing plate work surfaces, machine loading capacity of up to one ton.
Constant power spindle motor, cutting intensity, high efficiency
all dust and waterproof design, all-round protection machinery transmission parts.
Equipped with a sink and water cooling system.
Third, the technical parameters:
3.1 working stroke: 1200mmx1800 (2400) mmx260mm
3.2 platform size: 1400mmx2300mm
3.3 carving precision: 0.05mm
3.4 maximum engraving speed: 8mmin
3.5 spindle power: 4.55.5kw
3.6 spindle speed: 0-24000rpm
3.7 operating mode: stepper
3.8 operating voltage: ac380v50hz
3.9 carving command: g code
3.10 operating system: pci card control.
