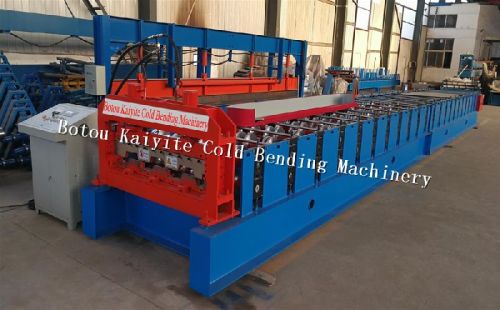

Three Waves Floor Deck Roll Forming Machine

Three Waves Steel Floor Decker Roll Forming Machine The rollers have been polished and heat treated which can make it form smooth and will not mark the panel sheet . Our design of the three waves steel floor decker roll forming machine is customized and optimized by computer .It can save plenty of temporary mold and concrete , so that reduce the roof weight. In a word , it is economic and save investment surely . Decoiling the sheet→Sheet guiding→Roll forming→Measure length→Cutting the panel→Panels to product stand Minimal maintenance high efficiency reliable working  low energy consumption Durable Technical Technical parameters: Material Specification  :  colored steel sheet , galvanized steel sheet. Thickness of coil sheet :0.8-1.2mm Forming speed : 10-15  meter min Hydraulic station power : 15kw Main motor power : 5.5kw Diameter of Shaft : 90mm Voltage : 380V 3phases 50Hz or at buyers requirement Controlling system : PLC In order to help you know our machine much better. The following is the detailed pictures of the machine Hydraulic cutting system : it is fully automatic and easy to operate . Forming rollers Specification: 45# steel, CNC Lathes, heat treated Feature: hard chrome plating, 0.05 mm Guide device It is used to control the width and position of the steel sheet. The sheet is guided into the machine with correct position, to make sure the panel is neat and parallel. Main frame specification: 350 H steel.
