Three Way Ball Valve

3 Way Multiport Ball Valve Manufacturers

Mixing and Diverting type Three way L and T Port Full Bore Ball Valve
End Connection - Flanged End, Pressure Rating - Class 150 / 300

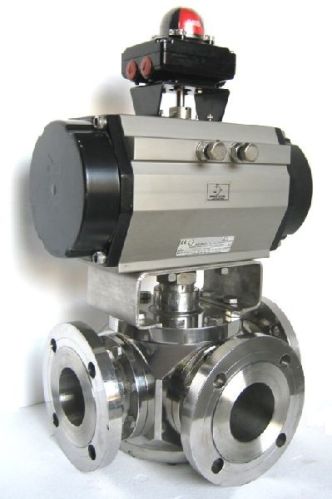

Valve Operation - Manual Hand Lever / Worm Gear / Pneumatic Rotary Quarter Turn Actuator

3 Way T Port Ball Valve Class 150 / 300 Series: F308T / F408T (Four Seat Supported, Square Body) Size - 1/2" (DN15) to 8" (DN200).
3 Way L Port Ball Valve Class 150 / 300 Series: F508L / F608L (Two Seat Supported, Round Body) Size - 1/2" (DN15) to 12" (DN300)

3 Way (Three Way) Ball Valve Manufacturing Size Range:  DN25/25mm/1"/One Inch, DN32/32mm/1-1/4"/One and Quarter Inch, DN40/40mm/1-1/2"/One and Half Inch, DN50/50mm/2”/Two Inch, DN65/65mm/2-1/2”/Two and Half Inch, DN80/80mm/3”/Three Inch, DN100/100mm/4”/Four Inch, DN125/125mm/5”/Five Inch, DN150/150mm/6”/Six Inch, DN200/200mm/8”/Eight Inch, DN250/250mm/10”/Ten Inch and DN300/300mm/12”/Twelve Inch Size.

Nivz Valves & Automation offers a tremendous value in Three Way Ball Valve. 3 Way Ball Valve is a Specialty of “Nivz”, a leading manufacturer, supplier and exporter of Ball Valve and Actuation.

We have a wide Range/Model of Three Way Ball Valve in Carbon Steel, Stainless Steel, Cast Iron and others metal on special request.

Our 3 Way Ball Valve selection covers Full Port, Flanged End with Manual Hand Lever, Gear Box, Pneumatic, Electrical Actuator Operation.

Three way ball valves have an L or T Shaped Port Hole through the middle for suitable service condition. The different combinations of flow are shown in the figure. It is easy to see that a T valve can connect any pair of ports, or all three. Mixing and Diverting Type Three Way Ball Valves are also available. The L valve can connect the center port to either side port, or disconnect all three, but it cannot connect the side ports together.

Nivz 3 Way Ball Valve features Four/Two seats for equal seat loading. Multiple Gland Packing V Seal & Spring Tension Washer gives zero leakage from gland portion.

Our 3 Way Ball Valves are best suitable for all industrial applications. Nivz 3 Way Ball Valve application covers for Lube Oil Cooler 3 Way Ball Valve, Lube Oil Filter 3 Way Ball Valve, Duplex Heat Exchager 3 Way Ball Valve, Duplex Type Basket Strainer 3 Way Ball Valve, Duplex Filter 3 Way Ball Valve, Mixing and Diverting Type 3 Way Ball Valve, Multiport 3 Way  Ball Valve, Pump By-Pass Line 3 Way Ball Valve, Diverter 3 Way Ball Valve, Extened Stem 3 Way Ball Valve & Jacketed 3 Way Ball Valve can also available on special request.

For screwed end type we provide BSP/BSPT/BSPP/NPT Female Thread as per customer choice. Socket weld end Nipple End Valve also can manufactuing on order basis. Multipor Valve available in Cast Carbon Steel (C.S - ASTM A216 GR. WCB), S.S. 304/316/304L/316L (ASTM A 351 GR. CF8/CF8M/CF3/CF3M), Low Temperature Carbon Steel - LTCS (ASTM A 352 GR. LCB/LCC), Alloy 20, Monel and Others of request. 3 Way Ball Valve application is for Mixing, Diverting & Blending.

Our manufacturing range of 3 Way Ball Valve starts from size 1/2" to 12", Pressure Rating - 150# / 300# / PN10 / PN16 / PN25 / PN40 / PN64.

Nivz all 3 Way  Ball Valves are supplieed with PTFE V Ring gland packing for long life zero leakages from gland area. For High Pressure application and Oil-Gas application we also do provide Fire Safe type design for better performance of valve.

Nivz multiway ball valves are satisfactory perfrom in various Power Plant in Lube Oil Cooler and Filter Application. This application covers both valves operate by single Hand lever or Gear mechanism, Lube Oil cooler can be vertical or horizontal position and center distance between both valve up to 5 meter.

Our lube oil 3 port valve performs at present in three Captive Power Plant at Cement Industries (major install by Thermax Ltd. / HTC China), one in KSK Power Energy and one more in Godavari Green Energy Ltd. Satisfactory performance report give by customer.

Nivz Valves & Automation Three Way Ball Valve Manufacturer, 3 Way Ball Valve Exporter, Supplier, Stockist, Importer. L Port / T Port / Diverter Type / Multiway / Multiport / Lube Oil Filter / Lube Oil Cooler Changeover Ball Valve with Pneumatic Rotary Actuator, Motorized and Electrical Actuator Operated.
