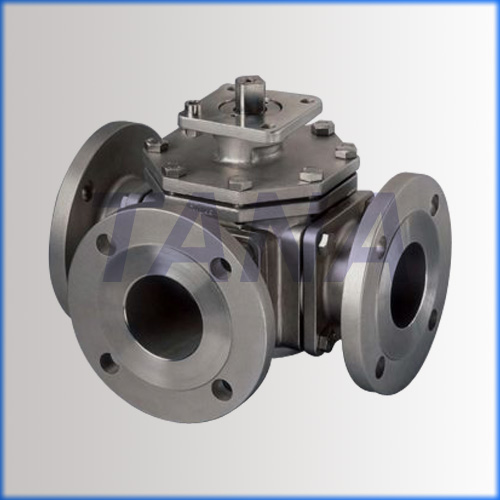

Stainless steel Three Way Ball Valves

We are offering three way ball valves.
quick details
standard or nonstandard:standard
structure:ball
pressure:medium pressure
power:manual
material:casting
temperature of media:medium temperature
media:water,oil,gas,acid fluid etc.
port size:2" ~32"
place of origin:zhejiang, china (mainland)
model number:q44f
brand name:tana or oem
end connection:rf,rtj flange
seat:metal to metal or ptfe,rptfe
packaging & delivery
packaging details: plywood case
delivery detail: as soon as possible
specifications
tana 3 way ball valvesize:2"-32"pressure: class150-1500lbmaterial:wcb,lcb,cf8,cf8m,cf3,cf3m etc.
tana 3 way ball valve
design features
3 way/port
bow-out proof stem
fire safe design
anti-static device
free leakage of body sealed construction
low torque in operation
emergency sealing
technical specification
size:2"-32" or dn50-dn800.
pressure: class150-1500lb or pn16-pn160 or 10k-40k
material:wcb,lcb,cf8,cf8m,cf3,cf3m, a105,lf2,f304,f316,f304l,f316l.
seat material: metal seated, ptfe,rptfe,peek
design & manufacture std.: api608, asme b16.34, api6d, bs5351 .
face to face std.: asmeb16.10 ,jisb2002,api 6d, din3202, asme b16.25
end connection std.: asme b16.5,asme b16.47, jisb2212-jisb2214, din2543-2550,asme b16.34
test standard: iso5208, api598 ,jisb2003, api 6d, bs 6755
operated way: lever, gear, pneumatic, electric actuator.
manufacturing to nace mr-01-75 on request.
tana will provide you satisfying price, quality and service.
provide co,fa,fb,fe,ff,fn,fp,fx etc. Certificates as per customer’s requirement.
