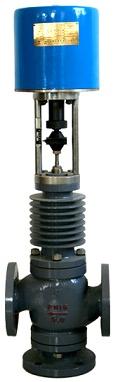

Three Way Valve,3 Ports Mixing Valve, Packaging Type : blue

We are offering converging three-way valve,3-ports mixing valve,3-port diverting control valve, 3 way control valve.
zxq/ zxx control valve series:
zxq/zxx pneumatic diaphragm three-way type regulating valve:
zxx/zxq series pneumatic diaphragm three way regulating valve uses vertical guiding structure with dual cores, supported by multiple spring actuator.
the valve body applies cross structure, namely one in and two outs (shut type) or two ins and one out (confluence type), for the purpose of mixed temperature increase or decrease of fluid or unequal shunting of fluid, meeting service requirements by different work conditions.
the integral design is characteristic of compact construction, light weight, flexibility of action, limited loss of pressure drop, large valve capacity, accurate flow characteristics, easy of maintenance, etc., suitable for a variety of work conditions.
the product is especially suitable for the temperature control system in heat exchanger in petrochemical industry and automation in other sectors.
the series product offers several models: regular confluence (shunt) type, high-temperature confluence (shunt) type, etc.
the nominal pressure rating includes pn (mpa) 1.6\4.0\6.4\10.0 (asme class:150/300/400/600), the valve body orifice scope includes dn(mm) 20-200 (3/4"~8″), the leak standards include level iv/iii and the flow characteristics include linear\equal percentage etc.
