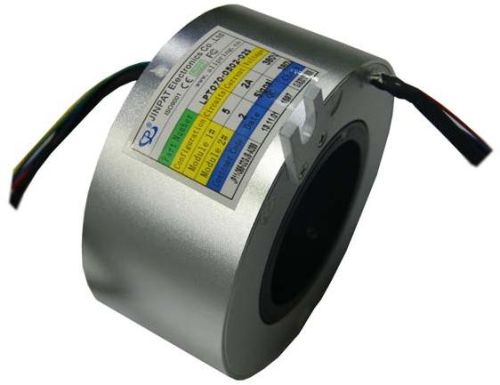

Through Bore Slip Ring (LPT070)

Backed by our knowledge and experience in the industry, we are engaged in presenting the best range of Through Bore Slip Ring (LPT070). Being an illustrious figure in the industry, we aim to live up to our reputation. The product on offer is compactly designed and equipped with fiber brush technology. We make sure there is no defect whatsoever. As required by industrial norms, it is high in quality.

Main Application

• Packaging / wrapping machinery.
• Semiconductor handling systems.
• Industrial machinery.
• Exhibit Display machinery.
• Medical equipment.
• Rotary index tables.
• Process control equipment.
• Emergency lighting, robotics Palletizing machines.
• Heavy equipment turrets or cable reels.

Option

• Placement of custom circuitry directly onto the unit.
• Custom mechanical integration features.
• Addition of specialist components.
• Inclusion of coax and miniature data bus cables.

Features

• 70 mm through-bore.
• Compact 135mm outside diameter.
• Modular design - a single module can have: one 50 amps ring; two 30 amps rings; one, two or three 10 amps rings or six 5 amps signals.
• Up to 20-50 amps circuits.
• Speeds up to 500 rpm continuous.
• Steel bearings and machined shaft and housing for harsh environments.
• Collar mounting is standard; flange mounting is optional.
• Various lead exits are available.
• Silver plated rings are standard. Gold plated optional.
• Continuous 360^o rotation of power or data signals
• Sealed unit.

Advantage

• Transfers control and data signals
• Fiber brush technology provides maintenance-free operation (no lubrication required).
• Modular design meets special requirements through off-the-shelf manufacturing techniques.
• Customized configurations for your application.
