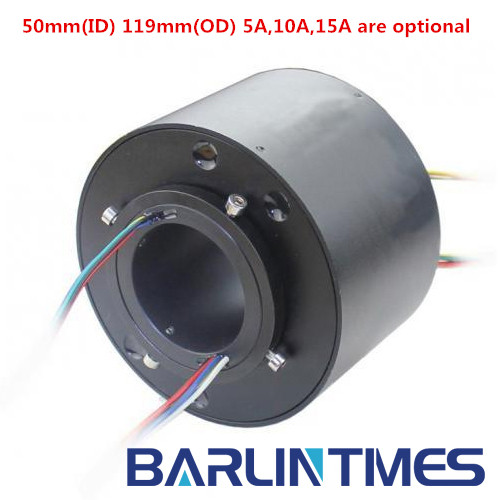

Through Hoole Slip Ring With 50mm Inner Diameter

Through hole slip rings are slip ring with through bore, this series are designed for being installed with flange on a sleeve bracket, also they totally meet with continuous transmission of power andor signal under 360 degree unrestrained rotations. This kind of slip ring applies the best advanced fiber brush technology and precious metal multi-contacting, low noise, low contact pressure and maintenance free. Our standard through hole size could be from 12.7mm- 190mm are optional, the standard circuits are 6 rings, 12 rings, 18 rings and 24 rings are available, the current can be alternative from 2a-800a. Standardized & modularized design, we could fully customize the best suitable product according to the special requirement of customer.
features:
1.modular design & compact design
2.transmit various analog and digital signal
3.low wear and long work life time
4.compatible with data bus protocols
5.360 degree continuous rotary power transmission or data signal
option:
1.current & voltage
2.circuits
3.inner diameter, outer diameter and length
4.work speed
5.housing material and color
6.protection degree
7.lead wire exit direction
8.lead wire length
9.connector type
10.signal and power transmitted single or together
application:
1.radar, antenna, robotics
2.turn table, rotary sensor
3.engineering machinery equipment, cable wheel, test machine
4.packing machine, medical equipment
5.handling process control equipment
6.military equipment
7.wind turbine generator
8.emergency lighting machine, exhibitiondisplay equipment
thr-050t
specification
circuits 1-24 circuits
work speed 0-500rpm
work temperature -20�-+60�
work humidity 60%rh or higher
voltage rating 380vacdc
current rating 5a10a15a
dielectric strength �1000vac@50hz between each circuit
insulation
