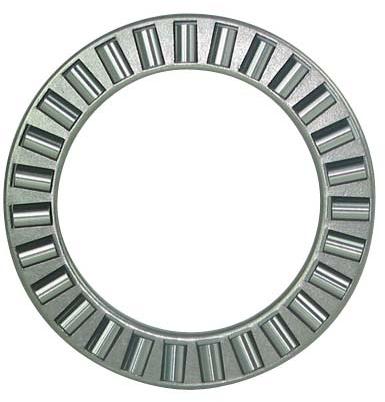

Thrust Needle Roller Bearing

We are offering thrust needle roller bearing.
Thrust Needle Roller Bearing, Series AXK, AS,LS Parallel Roller Bearing, Series 811, 812, 893, 874, 894 The thrust needle roller bearing or thrust parallel roller bearing is such a manner that the needles (rollers) with cage are set up in the space between rollway and collar and the cage reliably guides and clamps a lot of rolling bodies. There is a little difference among the rolling bodies in the same set. The thrust needle roller bearing or thrust parallel roller bearing is the one only supporting the axial load in one direction. It is used as the bearing allocation having the good rigidity and axial small space.
Thrust Collar, Shaft Ring and Seat Ring
Thrust Collar, Series AS, LS, GS, WS, ZS, TRA, TRB, TRC TRD.
Series AS thrust collar is punched with the high quality steel spring plate in thickness of 1mm and quenched and polished. When the surface of the adjacent parts can not be acted as rollway, although it has a good rigidity, Series AS collar shall play its full action.
Series GS, WS, LS thrust collars are made of bearing steel with the quenching process. The outer surface of GS seat ring and the inner surface of WS shaft ring are ground. Series LS thrust collar is an economic product with machining the outer and inter surfaces.
As for Series ZS thrust collar, when it is required for assembly to set up the bearing as bidirectional location, the series ZS collar can be used as axial location or seat hole location.
1. Material: chrome steel; Gcr 15
2.Quality: ABEC1 (P0 Grade) ; with super finished inner rings and outer rings, a sample testing throughout the production for the vibration level
3.Packging: standard export industrial packing
Other products list:
Drawn Cup One Way Clutches: HF, FC, RC, HFL, FCB, RCB, DC Series
Sprag Type One Way Clutches: BB, TSS, TFS, B Series
Drawn Cup Needle Roller Bearings : HK, BK, HK-RS, HK-2RS, BK-RS, FFH, MFH, FY, MFY, HF, HFL, SCE, BHA, SCH, F Series
Needle Roller and Cage Assemblies: K, K-ZW, K-D, K-ZWD Series
Heavy Duty Needle Roller Bearings: NK, NKS, RNA 49, RNA 69, RNA 48, NKI, NKIS, NA 49, NA 69, NA 48, RNA 49-RS, RNA 49-2RS, NA 49-RS, NA 49-2RS, NAO, RNAO, RNAV, NAW Series
Yoke Type Track Rollers Without / With Guidance: RSTO, STO, NATR, NUTR Series
Stud Type Track Roller: KR, KR PP, KRV, KRV PP, NUKR Series
Thrust Roller and Cage Assemblies: AXK, AXW, K811, K812, K893, K874, K894, AS GS811 WS811 LS, WS GS, ZS Series
Radial Needle Roller, Axial Cylindrical Roller Bearings: ZARN, ZARF Series
Cylindrical Roller Bearings: SL0450X, SL04X Series
Automotive Bearings on Peugeot: Peugeot 405: DB68933, NE68934, Peugeot 206: NE70214, DB70216 Series
