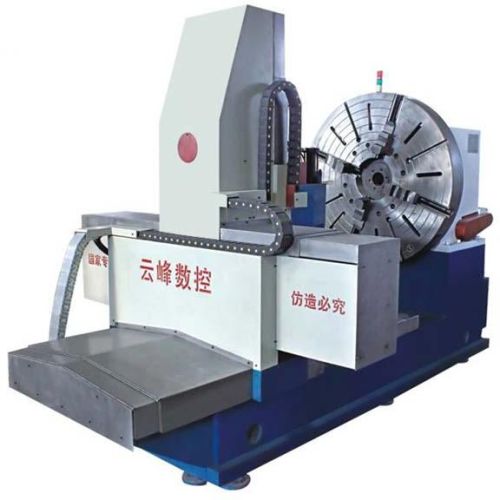

Tie Mold CNC Milling Machine

Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Tie Mold CNC Milling Machine is specially used for pattern ring processing of all steel tie molds. The feeding guide surface of our Tie Mold CNC Milling Machine is equipped with self-lubricating....

View More Details

Send Enquiry

Product Details

Tie Mold CNC Milling Machine is specially used for pattern ring processing of all steel tie molds. The feeding guide surface of our Tie Mold CNC Milling Machine is equipped with self-lubricating roller linear guide rail. Four-axis linkage system of our Tie Mold CNC Milling Machine is known for its superior performance, high precision and reliability. It shortens the processing time of EDM processing and improves the production efficiency significantly.

Attributes :

High-precision, high rigidity, impact-resistant and self-lubricating linear guide rail
Outstanding load-bearing capacity and high speed
Rotary axis, automatic clearance elimination, and automatic locking device

Technical Specifications

Model	YFX-1600
Operating system	Taiwan Pou Yuen system (optionai)
X-axis stroke	600mm
A- axis	0~360°
A- axis rotary axis	Worm gear high precision indexing plate (with automatic clearance elimination device)
Each servo axis motor	Huada and Yaskawa (optional)
Spindle power	3.7KW
Spindle speed	50-8,000 revolution/min (Taiwan Kenturn,optional)
Screw	Taiwan HIWIN ball screw
Linear guide rail	Taiwan HIWIN linear guide rail
Chuck diameter	1250mm
Machining diameter range	650~1600mmï spindle BT30 750~1600mmï spindle BT40
Maximum load	3000kg
Weight of machine tool	10000kg
Boundary dimensinon of machine tool	3700×2250×2300mm
Positioning accuracy	0.02mm/300mm
Repeated positioning accuracy	0.009mm/300mm
Maximum machining speed	6000mm/min
Fast feeding speed	10000mm/min
